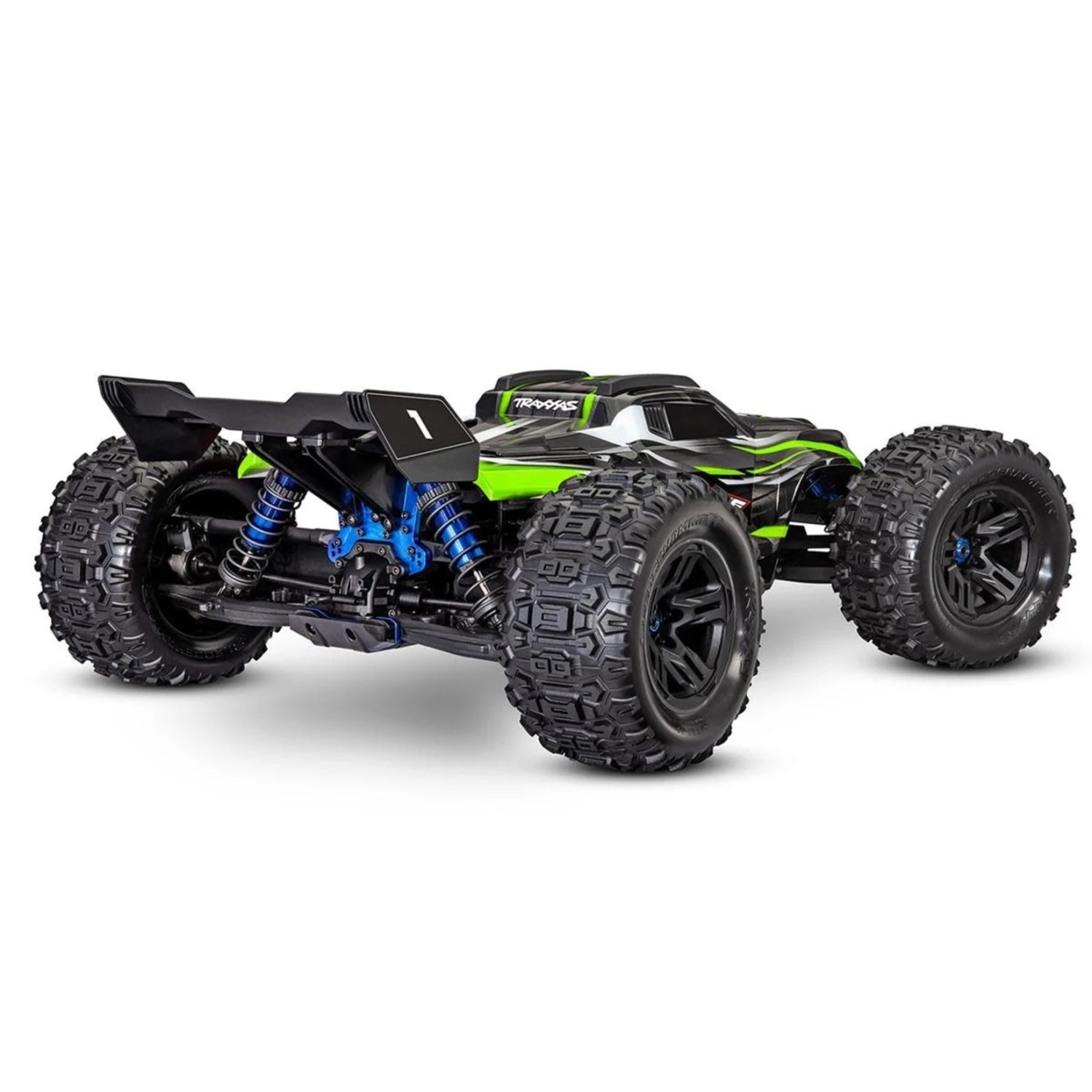

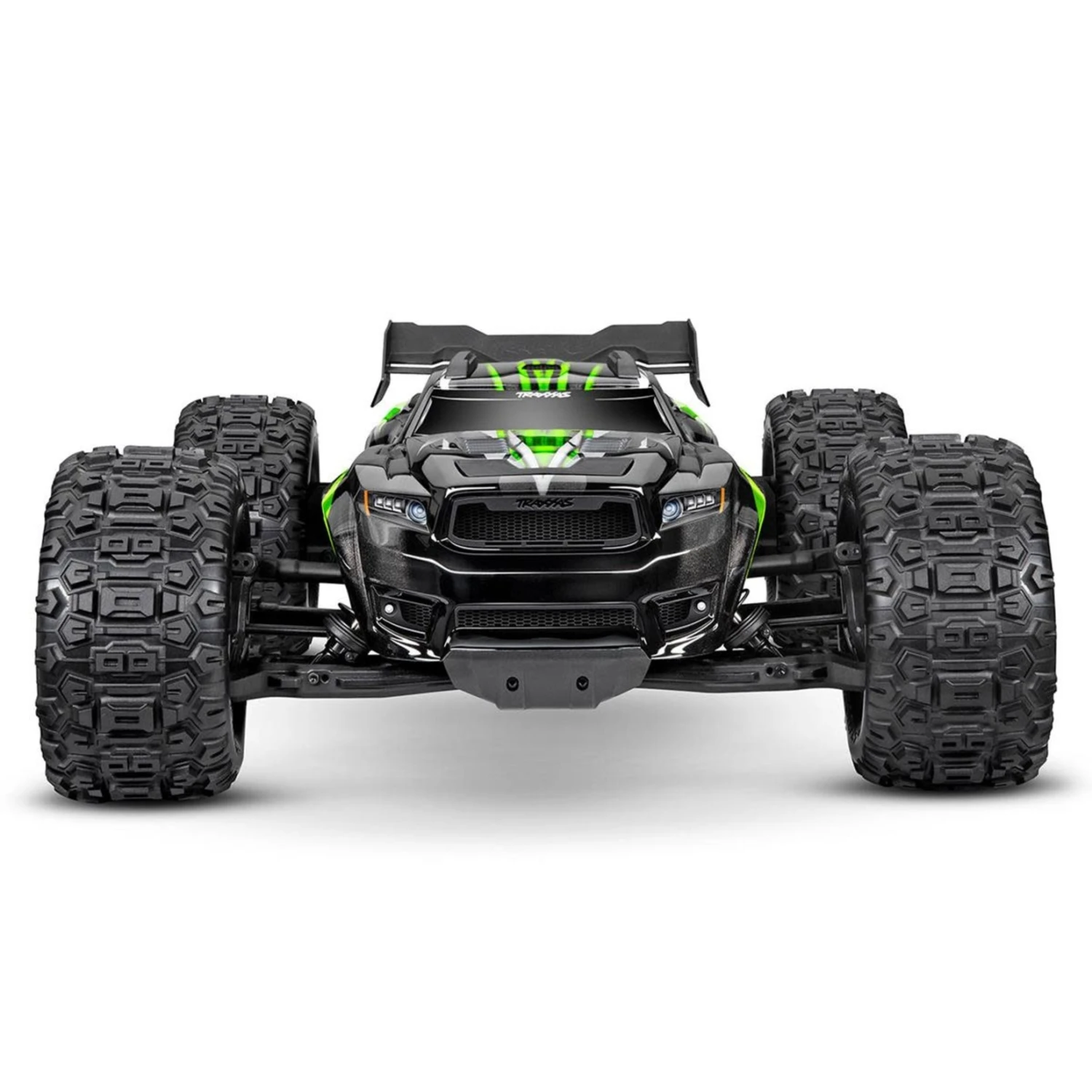

Traxxas Sledge RTR Monster Truck – 6S Brushless Basher

The Traxxas Sledge RTR 6S 4WD Electric Monster Truck, is an all out basher designed to give you the power and performance for serious off-road fun. This monster truck features a rock solid chassis, massive steel drivetrain, 6S power system and race inspired handling. These features lead to a truck that is designed to push the limits of off-road bashing and look good in the process. Pick up the Traxxas Sledge and leave everything else in the dust.

Powering this monster truck is a Traxxas VXL-6S Velineon ESC and a 2000kV Brushless Motor. Traxxas then used massive steel gears, a triangulated chassis and a center T-bar brace to hold up to the 6S power. A special aluminum motor cradle is used to secure the motor in place eliminating motor flex. The drive train features a torque-biasing center differential that distribute power evenly throughout the chassis. Solid steel axles are used front, center and rear to deliver the power to the wheels. The shock towers are 5mm thick and are tied directly to the center brace for further durability. Holding the truck up are large-bore GT-Maxx aluminum shocks mounted with 4mm hardware. Traxxas left no stone unturned and developed a truck that is ready for any terrain.

Features:

1/8th Scale basher designed specifically for 6S power
20% larger and 75% thicker drive gears

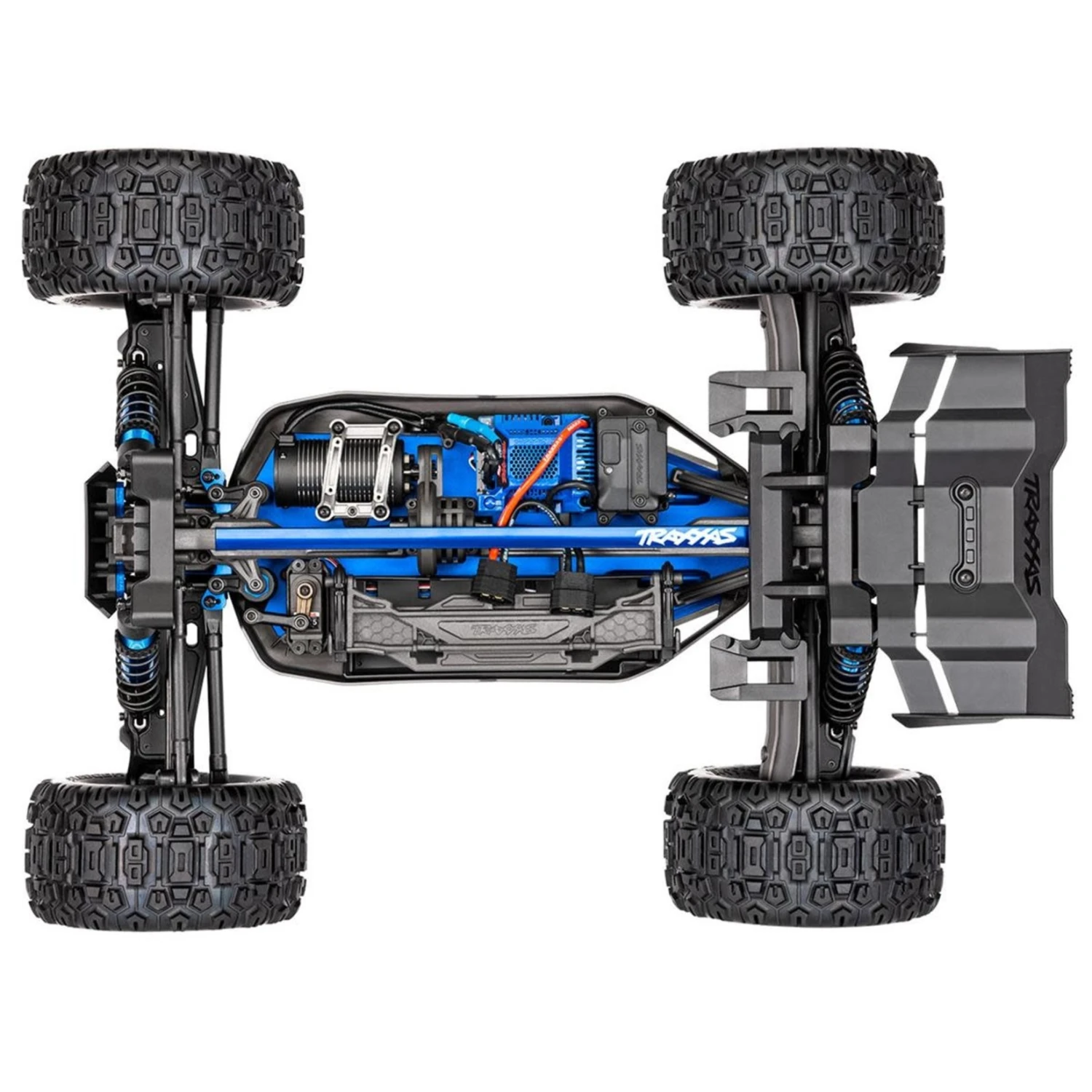

Triangulated chassis structure for superior chassis strength
Remove and replace the body in just seconds with exclusive clipless body
Includes a high-performance metal gear servo that produces over 347oz-in of torque
6S power system for brutal power
Durable Sledgehammer tires are used for great handling and traction

Specifications:

Truck:

Length (including wing): 23.78 inches (604mm)
Front Track: 18.10 inches (459mm)
Rear Track: 18.10 inches (459mm)
Ground Clearance: 1.95 inches (50mm)
Weight (no battery): 12.74 pounds (5.77kgs)
Height (overall): 8.43 inches (214mm)
Wheelbase: 15.10 inches (384mm)
Shock Length (front): 5.12 inches (128mm)
Shock Length (rear): 5.67 inches (144mm)
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
Wheel Diameter: 3.8 inches (97mm)
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip

ESC:

Model: Velineon VXL-6s
Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Reverse Delay: Yes, with lockout

Motor:

Type: 2000 kV sensorless brushless
Connector Type: Traxxas 6.5mm bullet connectors

Includes:

(1) Traxxas RTR Sledge Monster Truck
(1) TQi 2.4GHz radio system
(1) Jumper plug (for 4s battery use)
(1) Quick Start Guide
High quality maintenance tools

Needed to Complete:

4S: (1) 4S 6700mAh LiPo Battery with Traxxas iD Connector or (2) 2S 7600mAh LiPo Batteries with Traxxas iD Connectors
6S: (2) 3S 5000mAh LiPo Batteries with Traxxas iD Connector
(1) Compatible LiPo Balance Charger
(4) AA Batteries
