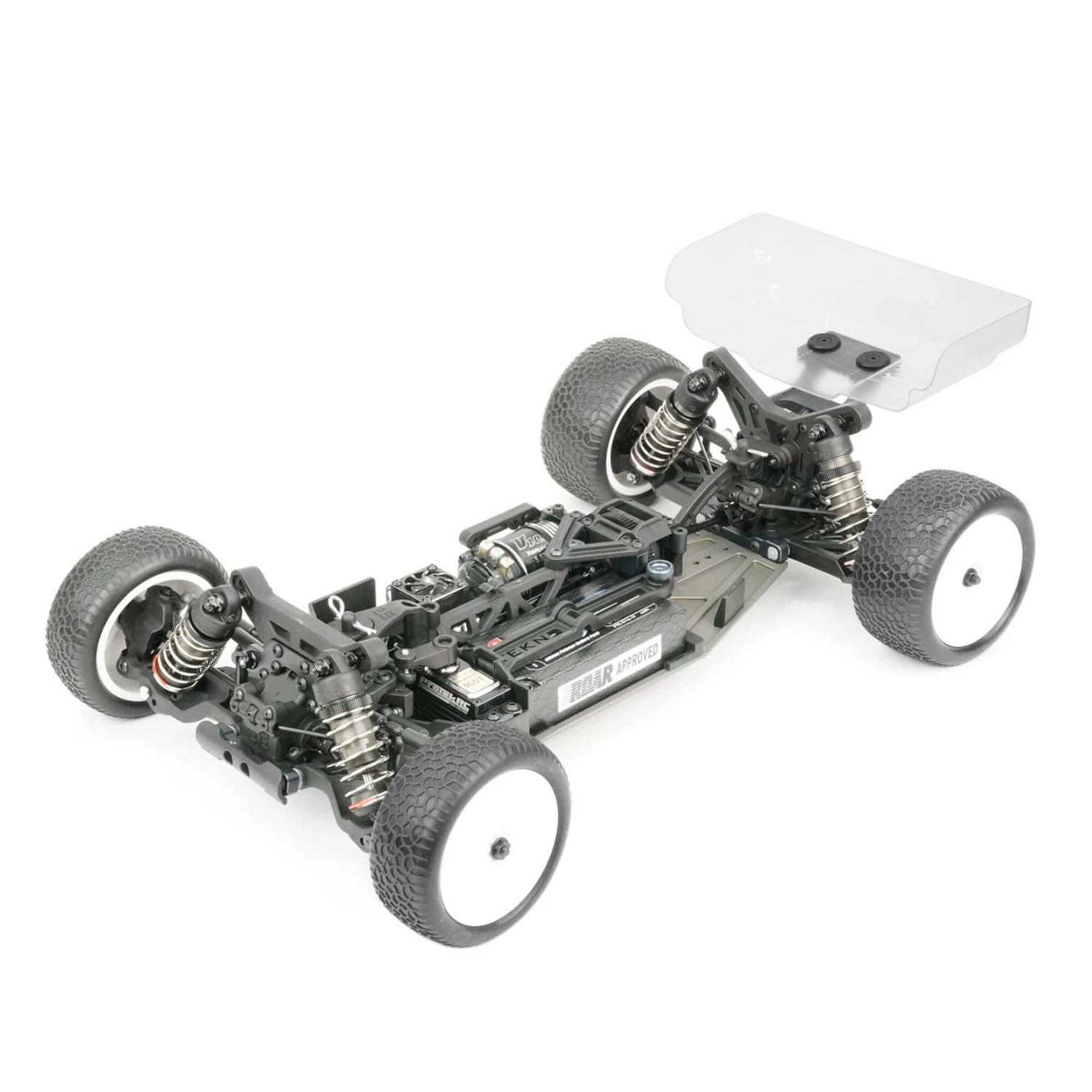

Tekno RC EB410.2 1/10 4WD Off-Road Electric Buggy Kit #TKR6502

The Tekno RC EB410.2 1/10 4WD Off-Road Electric Buggy Kit, the next evolution in 1/10th scale 4wd buggy that features many of the updated components of the ET410, but with several redesigned elements included to further improve handling and durability. Now included is a front end sway bar system along with updated 15-degree low roll center spindle carriers. The suspension has been upgraded with redesigned pistons and revised shock towers. In the rear, Tekno has included improved arms that allow front-mounted shocks, updated adjustable roll center rear hubs, and a upgraded, taller one-piece wing mount to help improve aerodynamics and roll characteristics. Durability has also been improved with a updated spur gear, a front bulkhead brace, heavy-duty ABCD hinge pin braces, and larger 3.5mm inner hinge pins. Features: Revised CNC 7075 Long Wear Chassis Updated Larger 3.5mm HD Hinge Pins and Revised Hinge Pin Inserts Updated ABCD Hinge Pin Braces w/ Revised Suspension Geometry Updated Taller, Stronger One Piece Wing Mount w/ Height Adjustments 13mm Big Bore Shocks w/ Revised Cartridge and Cap Bushing Ultra Secure Locking Spring Perch Design Updated Rear Arms w/ Front Mounted Shocks Updated Adjustable Roll Center Rear Hubs Updated 15 Degree LRC Spindle Carriers Updated Aluminum Front Camber Plate w/ Bulkhead Brace Revised Material 81T Spur Gear Front and Rear Sway Bars Now Included Large Wheel Bearings and 6mm HD Stub Axles Optimized Reverse Bellcrank Steering System Specifications: Length: 393mm (without wing) up to 424mm (with wing) Wheelbase: 283-294mm Width: 246-250*mm (*optional hubs required) Weight: 1630 (or less) to 1780g depending upon equipment used Diff Ratio: F/R – 16/40T, Center – 81T Battery tray dimensions: 96x47x26mm Kit/RTR: Kit Needed to Complete: 2/3 channel radio/transmitter 1/10 scale ESC and motor system High torque steering servo (at least 200oz/in) 48 pitch 17 to 34 tooth pinion 2s shorty LiPo battery (at least 4000mAh) 1/10th scale 4wd buggy tires, wheels & CA glue Paint for body NOTE: Completed, assembled and painted model shown for illustrative purposes only and is not included.
