Team Associated RC10 SC6.2 Off Road 1/10 2WD Short Course Team Truck Kit #70008

The Team Associated RC10 SC6.2 Off Road 1/10 Short Course Team Truck Kit represents the next step in the evolution of competitive short-course racing. The RC10SC6.2 Team Kit began life with the many great advantages already learned through the development of the RC10B6.2 and RC10T6.2. The RC10SC6.2 has been designed and built to the highest standard to give racers an edge over the competition.

The engineers behind the doors of Team Associated’s Area 51 incorporated the updates racers like you asked for and included more tuning option parts in the box. The RC10SC6.2 shares key components with the RC10B6.2, RC10B6.2D, RC10T6.2, and RC10B74.1 Team Kits, making it easier than ever to run multiple classes at the same time. Like the RC10T6.2, the RC10SC6.2 has new features such as an integrated fan mount, highly adjustable rear hub assembly, and the speed, durability, and lineage expected of a true champion.

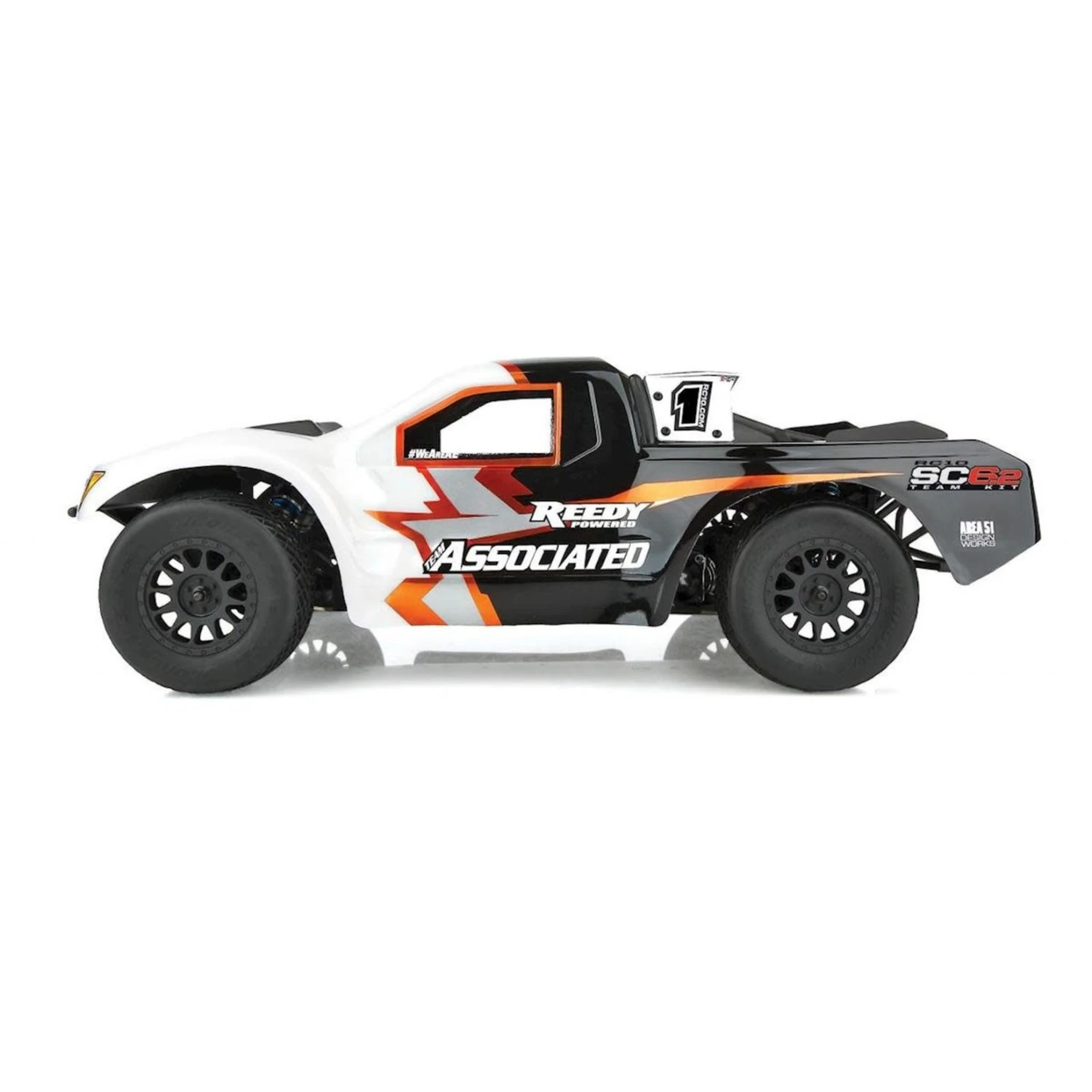

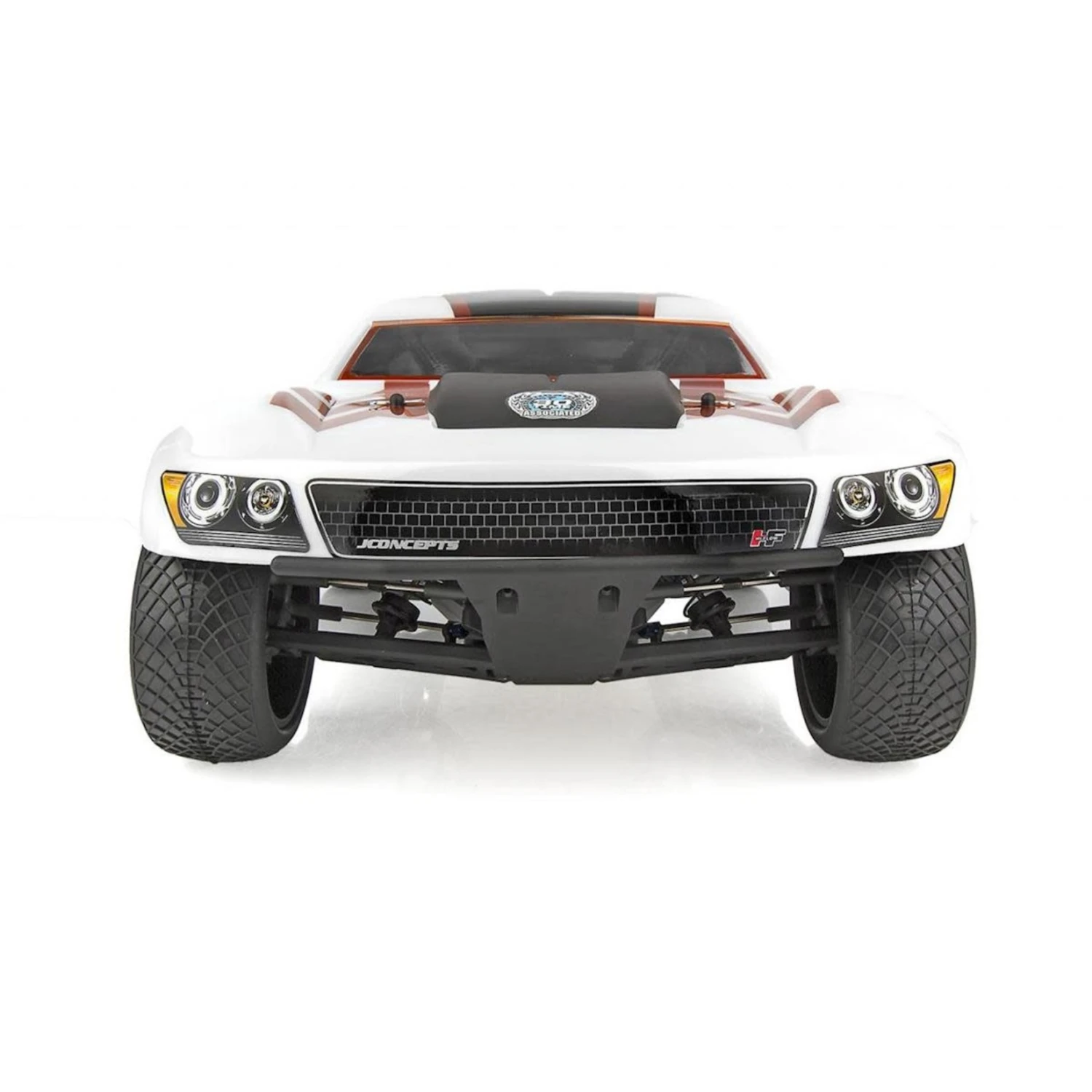

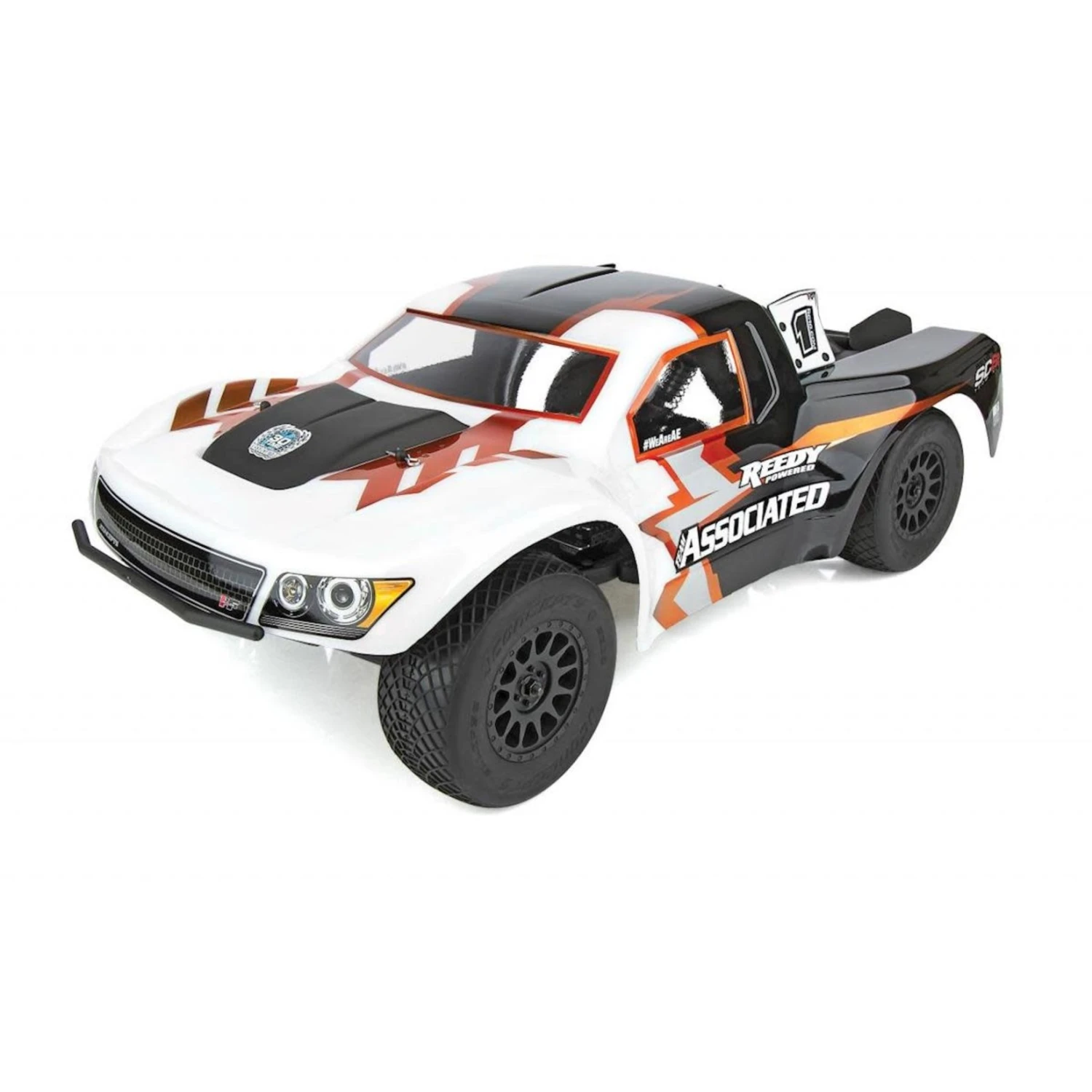

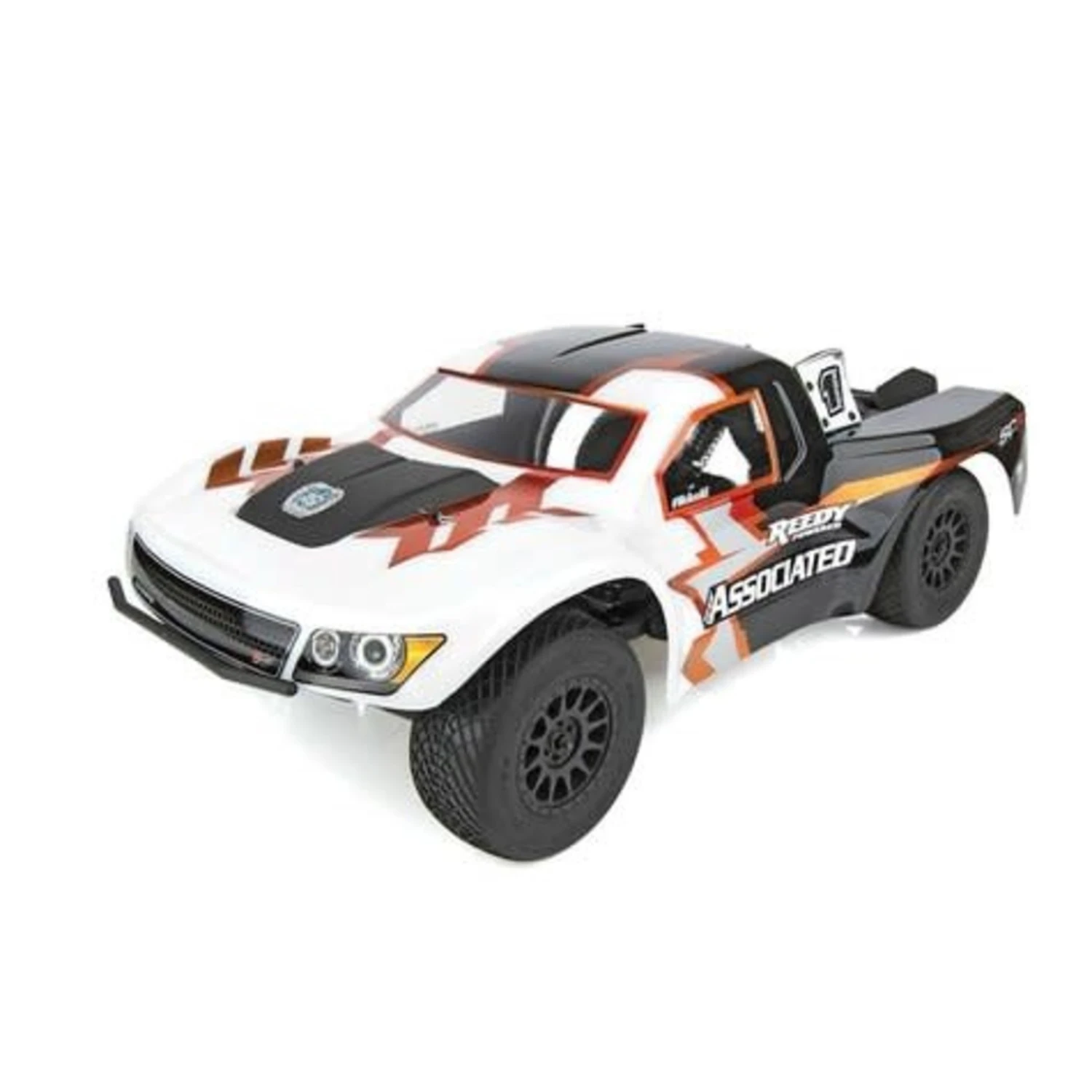

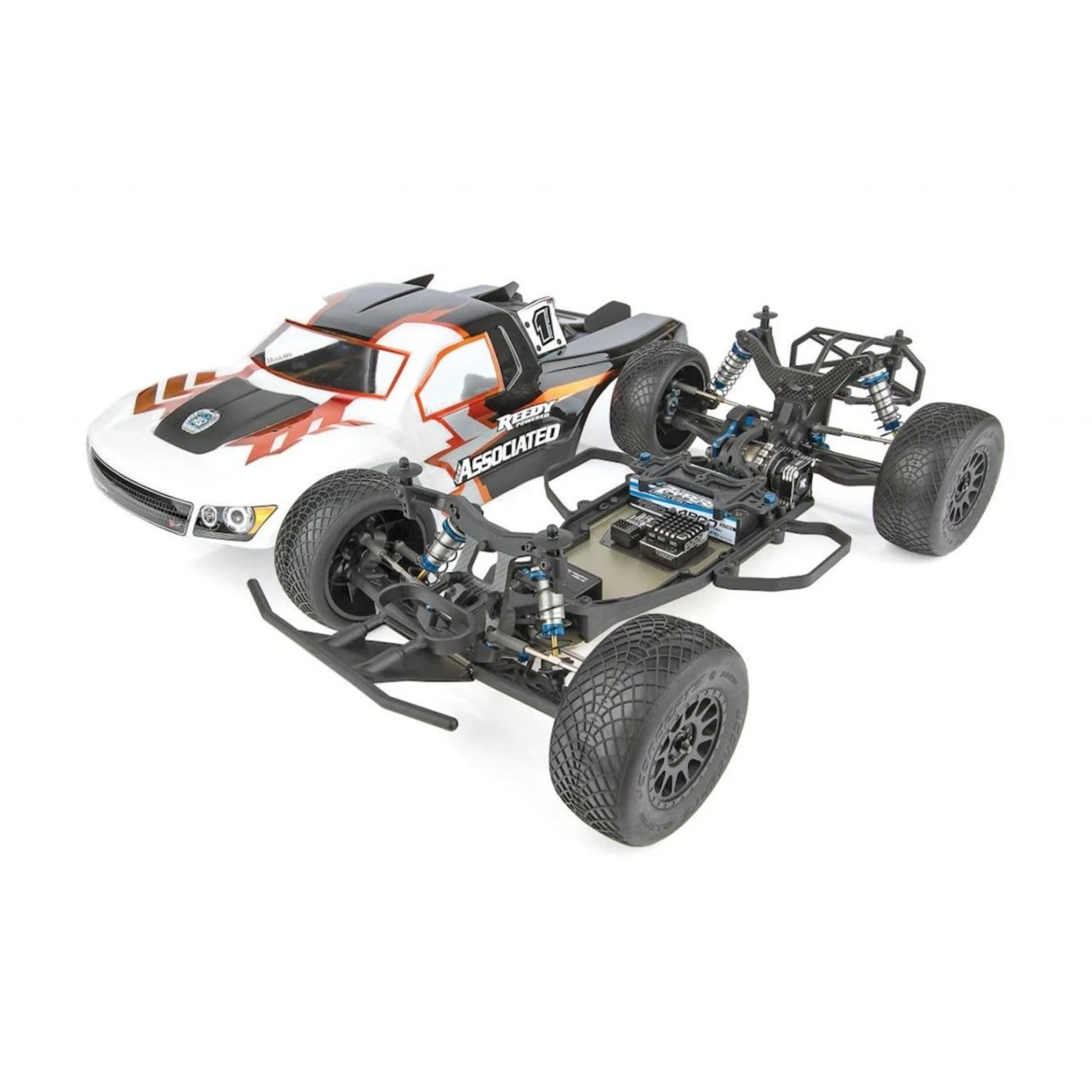

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model. Painted body is not included.



• B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments
• 1.3mm front anti-roll bar and hardware included for added high-speed stability
• Both Laydown and Layback Stealth transmissions included for tuning weight bias
• Factory Team 13g aluminum ESC tray
• Updated side rails for 30mm motor fan mount shared with B6.2 series buggies
• Redesigned rear shock tower with a new inner shock mounting position
• Redesigned rear shock tower with a new inner shock mounting position
• +1 carbon fiber steering block arms
• B74 66mm rear axles with 91mm CVA bones
• 8.5mm aluminum rear clamping hexes with laser etching
• Updated front bumper design for increased durability

• Lightweight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types
• Layback Stealth(R) transmission included for lower and more rearward CG
• Differential height adjustment with included 0, 1, 2, and 3mm inserts
• Easy access to ball differential
• New slipper assembly for better weight balance and shock clearance
• Heavy-duty 4mm carbon fiber shock towers
• Heavy-duty V2 rear axle with 91mm CVA bones
• V2 12mm Big Bore threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
• Machined pistons included for better fit and smoother operation
• Reverse bellcrank steering allows more room for mounting electronics
• Bolt-on steering block arms for easy Ackermann adjustments
• Aluminum rear ballstud mounts for added strength
• One-piece shock bushings to make assembly easier
• Lightweight aluminum top shaft
• Innovative rear arms with molded inserts for ultra-fine lower shock mounting adjustments
• Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustments
• Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)
• Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing bind and friction

Power Source: Electric

Terrain: Off-Road

Body Style: Truck

Scale Size: 1:10 Scale

Assembly Level: Kit*

Length: 538mm (21.18in)

Width: varies

Wheelbase: varies

Weight: varies

Internal Gear Ratio: 2.6:1

Drive: 2WD



• 1:10 scale 540-size electric motor
• 1:10 scale electronic speed control
• Polycarbonate body
• 2-cell LiPo shorty battery packs
• Battery charger
• 2-channel surface transmitter, and its batteries
• 2-channel receiver
• Steering servo
• Pinion gear (48 pitch)
• Spray paint for polycarbonate body
• 1:10 scale short course 12mm hex wheels
• 1:10 scale short course tires
• CA glue for tires and wheels
• Thread-locking compound
• Other helpful items: Silicone Shock Fluid, Body Scissors, Reamer / Hole Punch, Shock Pliers, Hex Wrenches, Nut Drivers, Hobby Knife, Needle Nose Pliers, Wire Cutters, Calipers or a Precision Ruler, Turnbuckle Wrench
