Tamiya Ford Escort Mk.II 1/10 4WD MF-01X Electric Rally Car Kit #58687-60A

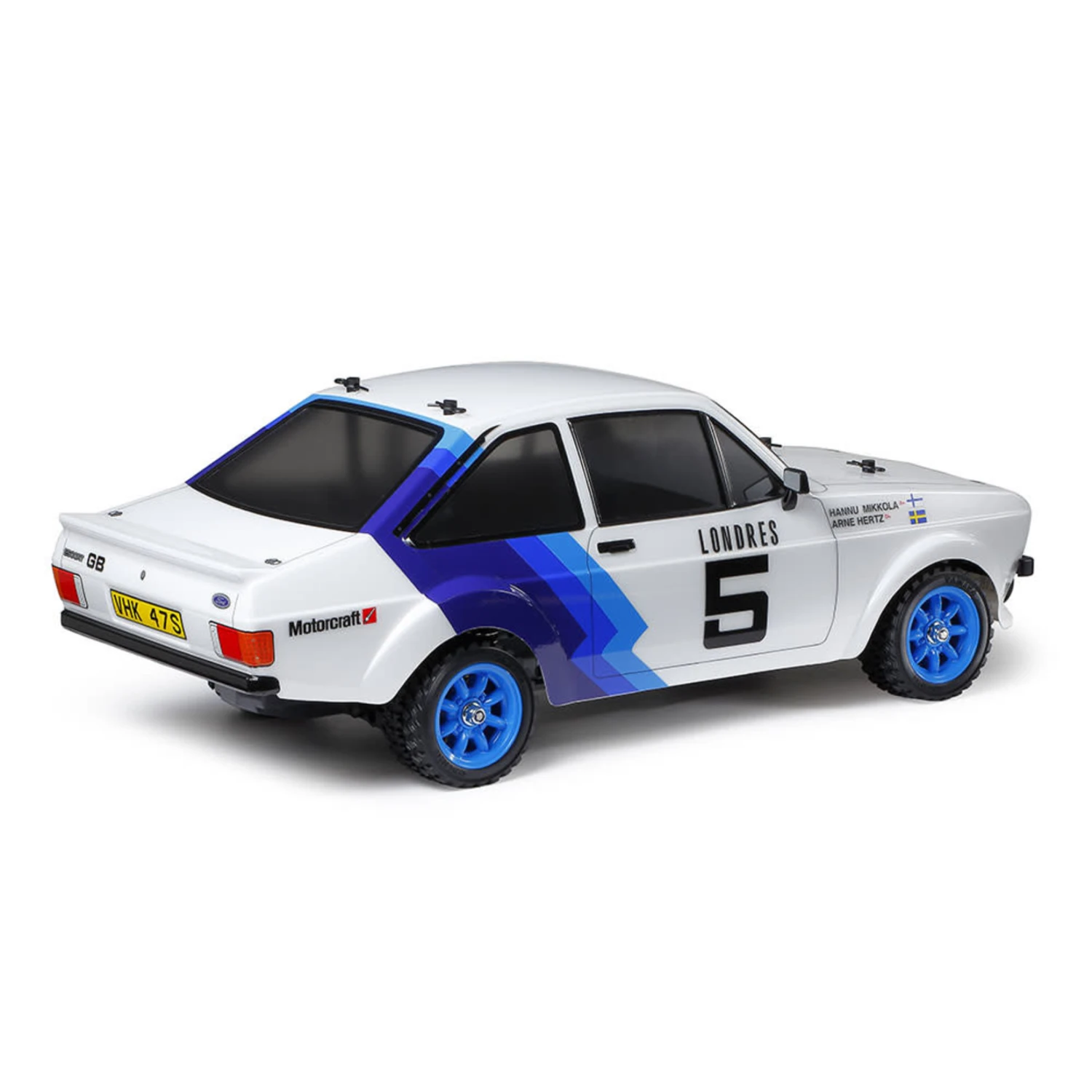

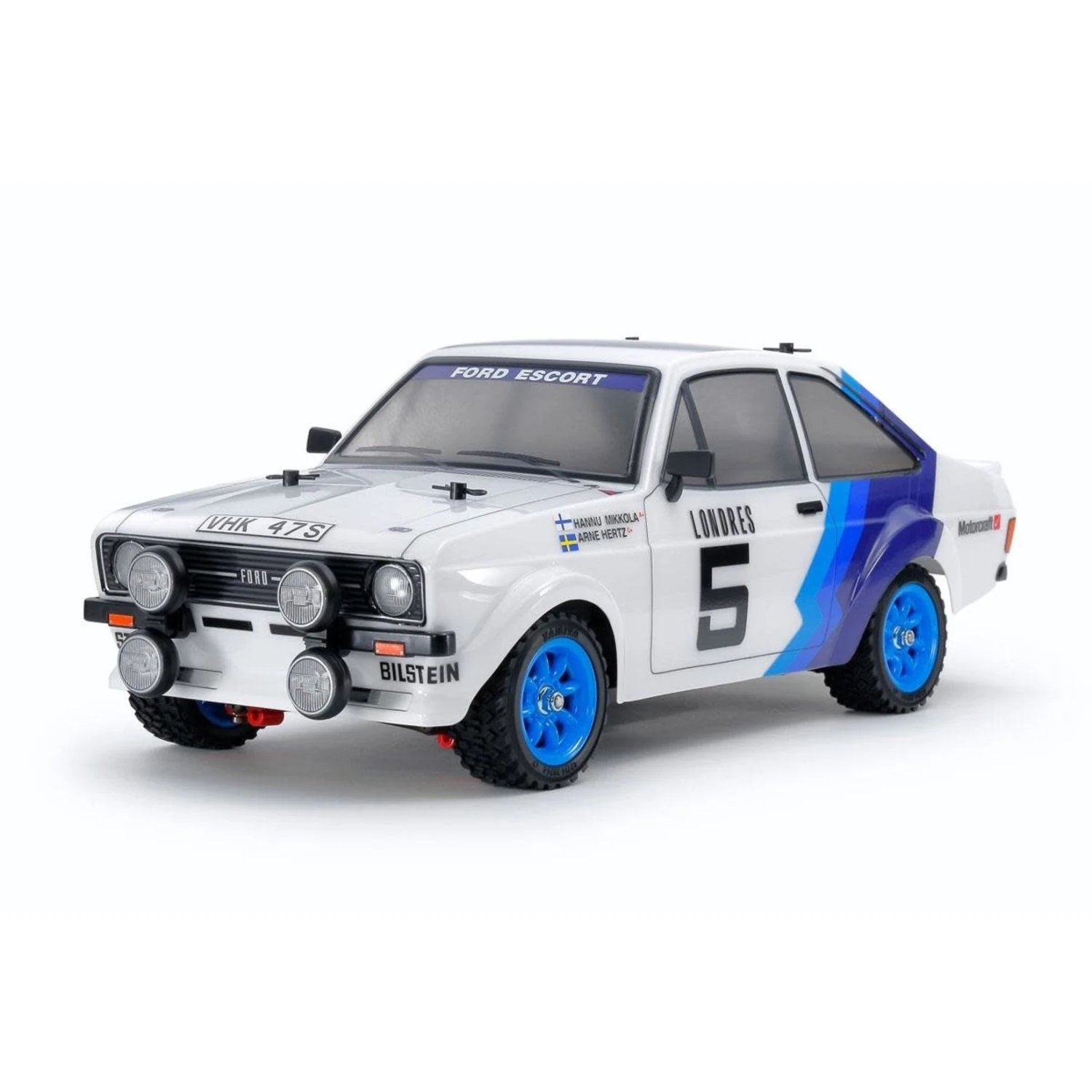

The Tamiya Ford Escort Mk.II 1/10 4WD Rally Kit features a pre-painted body and full decal sheet to give you the looks of the RAC Rally Champion from 1975-1979. This kit uses the MF01X Chassis that has been a proven chassis and makes for a great driving experience either on road or on flat dirt.

MF-01X Chassis

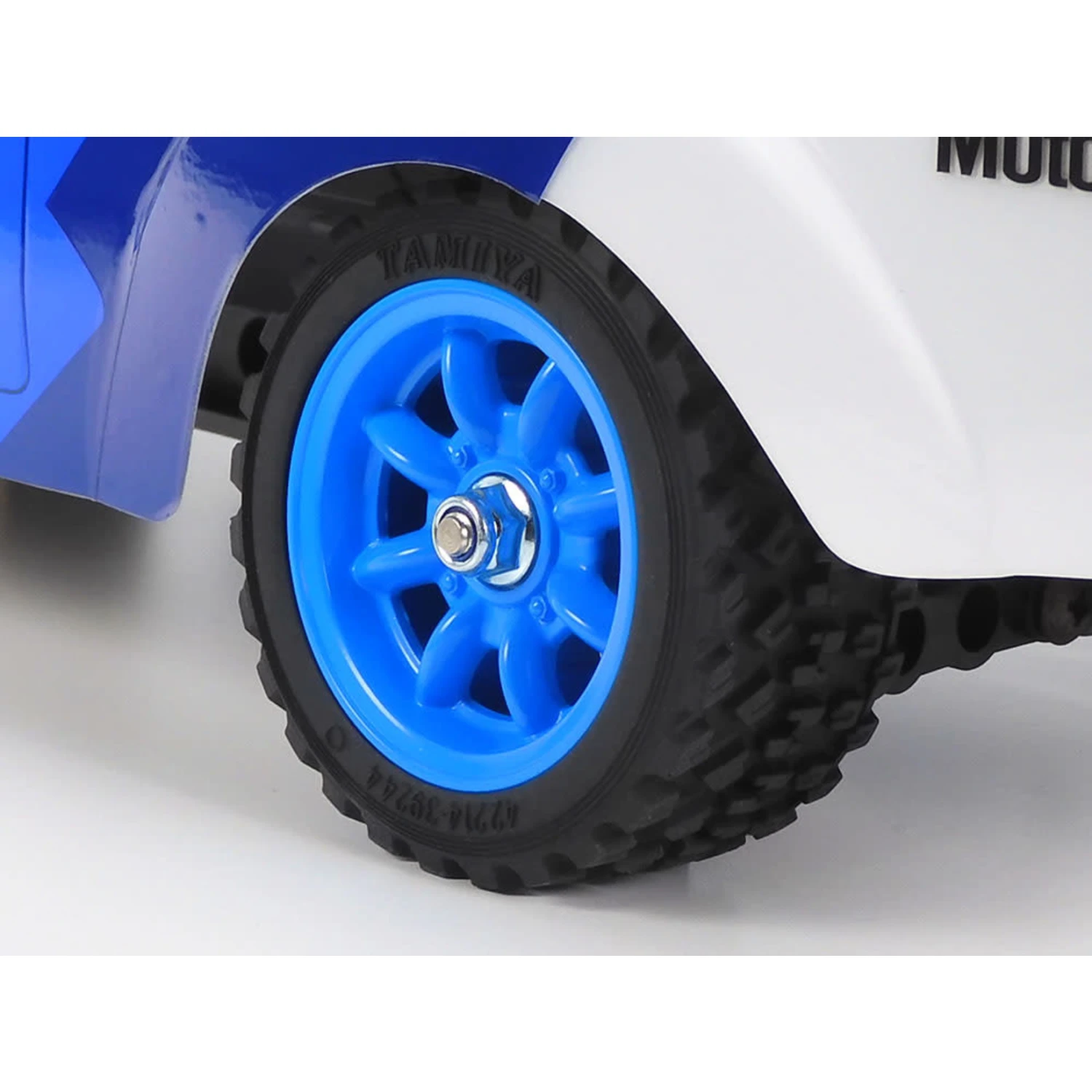

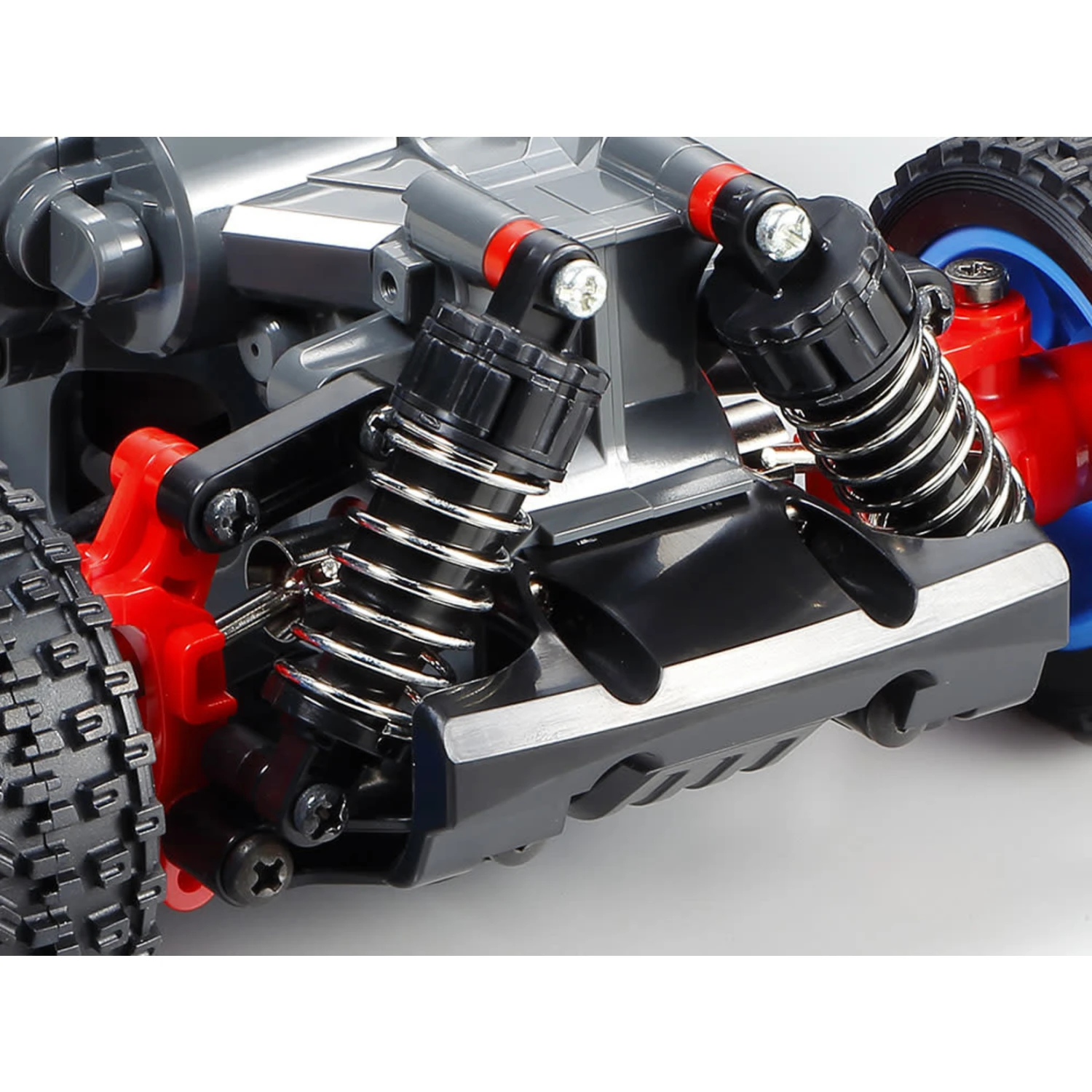

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.

NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.

Features:

• 1/10 scale R/C model assembly kit
• Pre-Painted Polycarbonate body

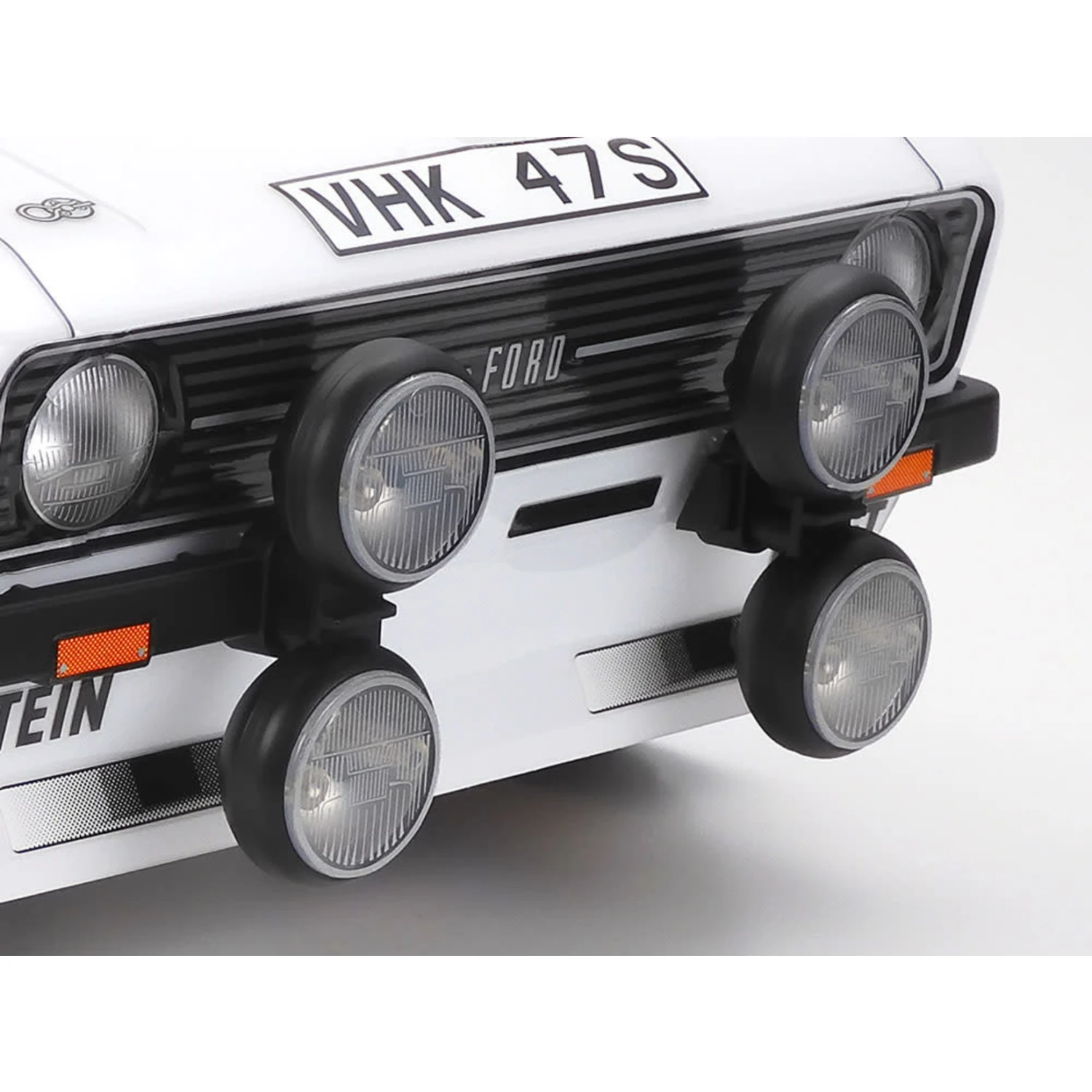

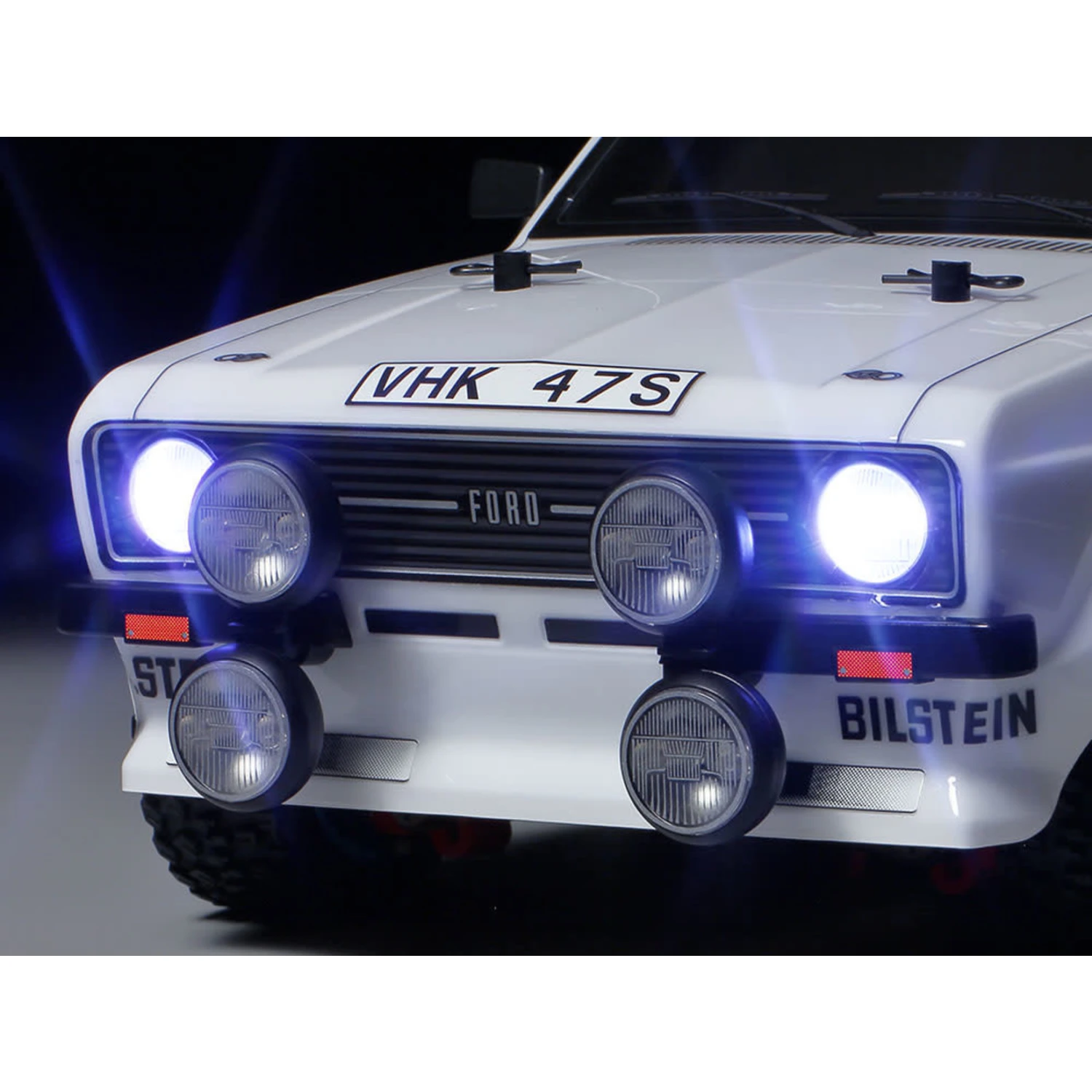

• Front and rear light buckets
• Stickers sheet to recreate blue livery sections, sponsor logos and more
• Double Wishbone Suspension

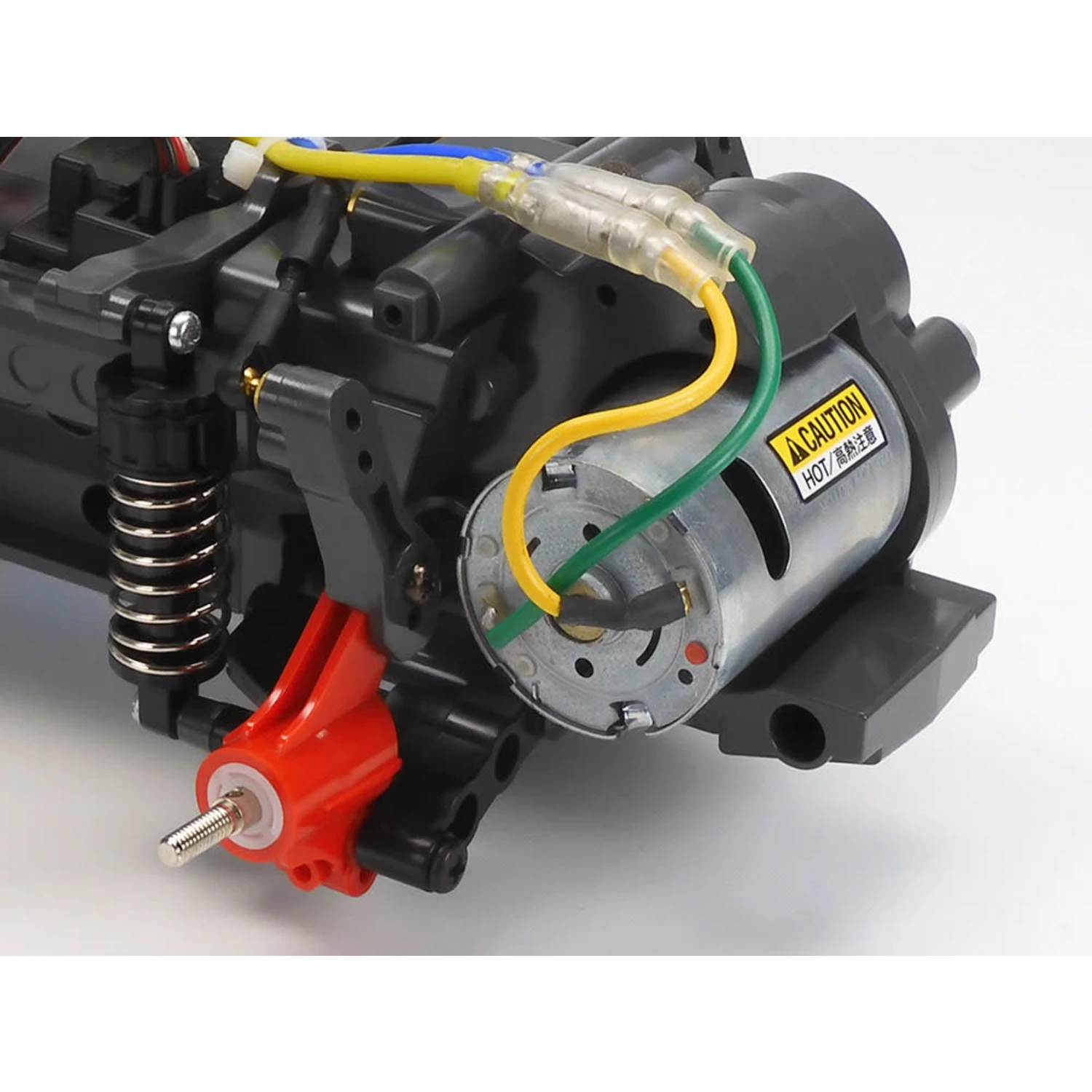

• Power from the rear mounted motor is transmitted by a gear differential to the rear wheels, and via a propeller shaft to the front
• The chassis can be assembled into S and M wheelbases using separately sold propeller shafts
• Tamiya Torque Tuned Motor included
• Includes a Hobbywing THW-1060 Brushed ESC

Specifications:
Length: 414mm
Wheelbase: 239mm L
Tires (F/R): F:27/69mm / R:27/69mm
Motor: 540 Adjustable Gear Ratio Yes
Bearings: Plastic bushing
Body Material: Polycarbonate pre-painted body
Chassis Material: ABS Plastic
Chassis Type: MF-01X
Construction Type: Assembly Kit
Drive Type: 4WD
Electronic Speed Control: Included
Motor: 540-brushed type
Scale: 1/10
Shock Damper: Friction damper
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose

Needed to Complete:

• 2-channel Radio and Receiver
• Steering Servo
• 7.2v Battery with Tamiya Connector
• Charger
• AA Batteries
• Tools
