Orlandoo Hunter OH32X02 1/32 Micro 4×2 Trophy Truck Kit (Clear) #OH32X02

Orlandoo Hunter Micro Trophy Electric Short Course Truck

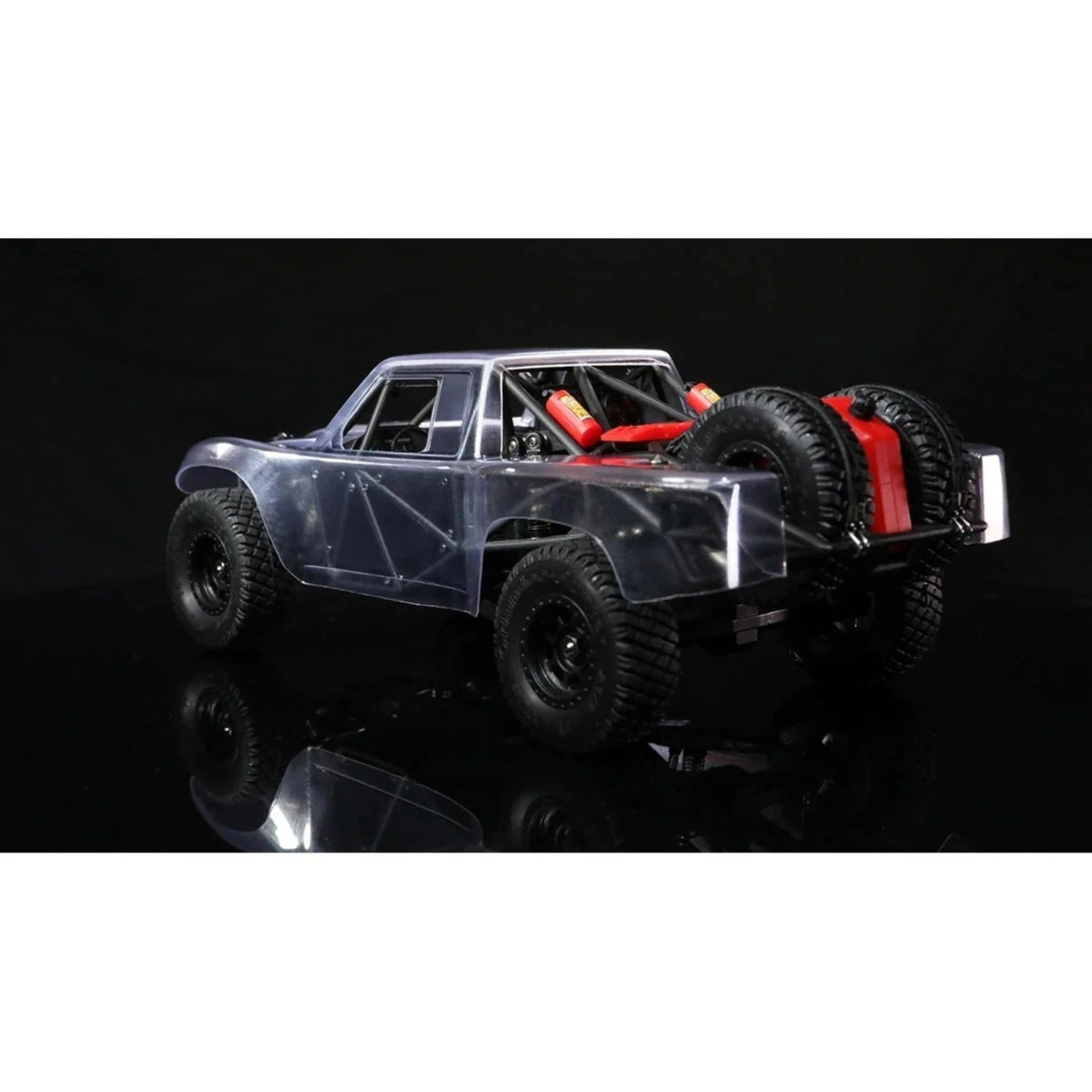

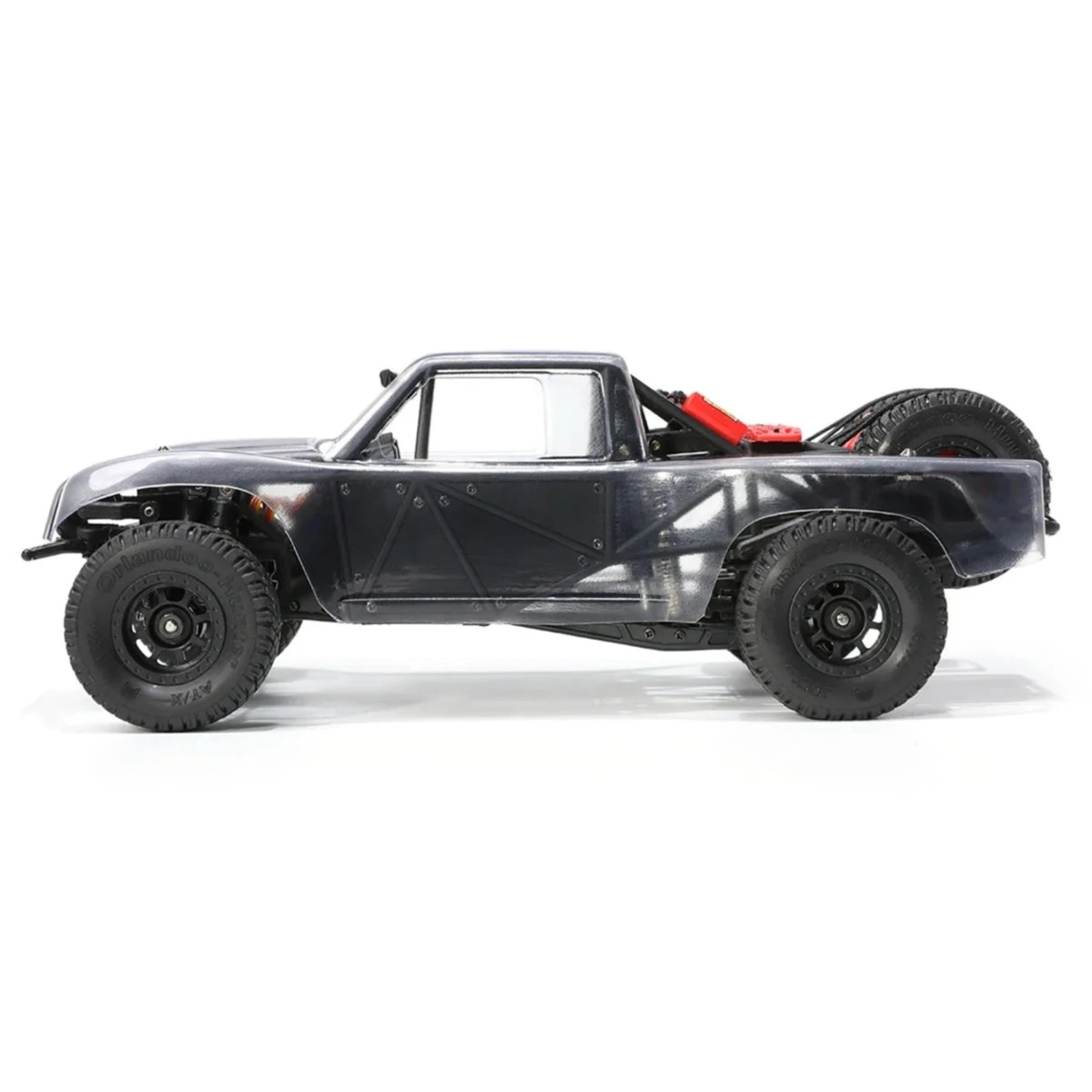

This is the Orlandoo Hunter OH32X02 1/32 Micro Trophy Truck Kit. When it comes to extremely detailed micro scale vehicles. Orlandoo Hunter has been releasing breathtaking ultra scale high quality models one after the other, but with this first of its kind micro Trophy truck addition, Orlandoo has really knocked it out of the park! From the extremely detailed interior with the dashboard to the twin spare wheels, fire extinguisher, fuel canister, and etched metal twin fan radiator in the exterior Orlandoo made sure they were all captured perfectly to mimic the true 1/1 scale Trophy Trucks in a tiny 1/32 frame with the perfect blend of scale details and astonishing performance!

Note:

• Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
• This truck is all about racing, unlike its Orlandoo brethren. As such, you’ll want some speed so Orlandoo Hunter recommends the 3000rpm N30 motor to provide adequate torque for off-road driving, together with enough wheel speed for some serious fun.

Features:

• 0.8mm durable lexan shell
• High strength polycarbonate tubular cage chassis
• Second skin etched metal infill plates if you want to run the cage without the bodyshell

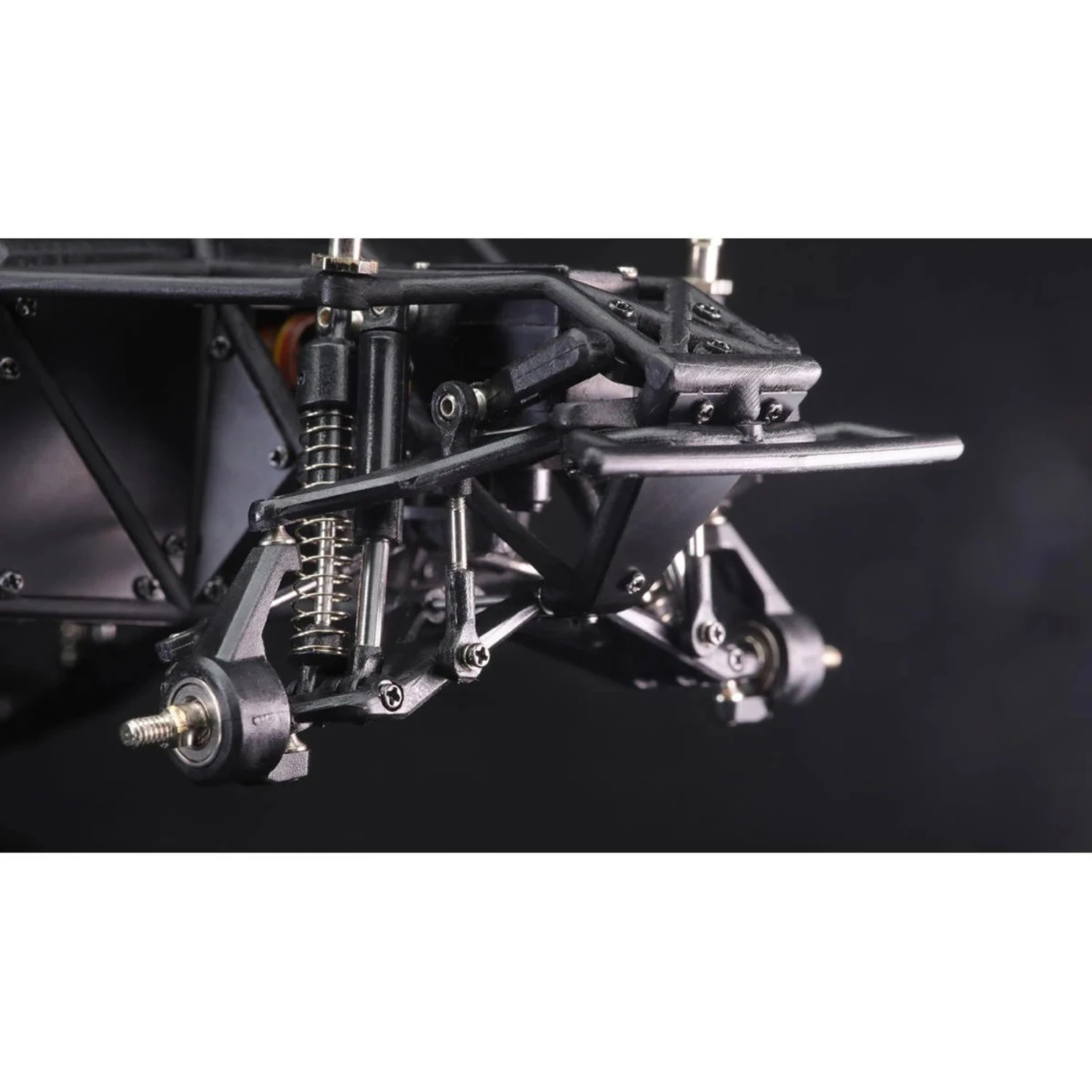

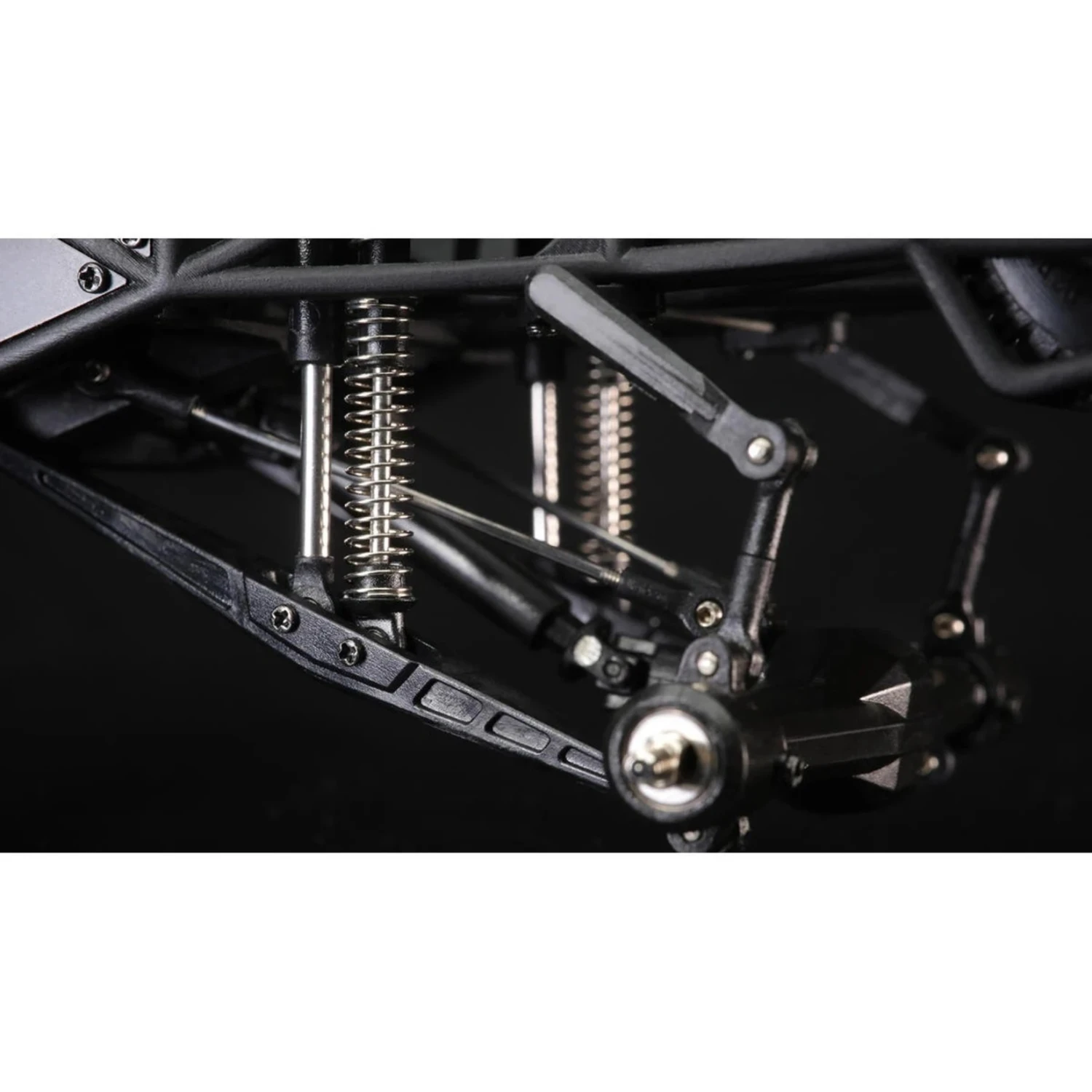

• Long travel suspension with independent front double wishbones and rear trailing arms / four-link solid axle setup.
• Each wheel is equipped with twin shock absorbers – long travel coil-overs and internal spring dampers for a super plush ride
• Front and rear anti-roll bars

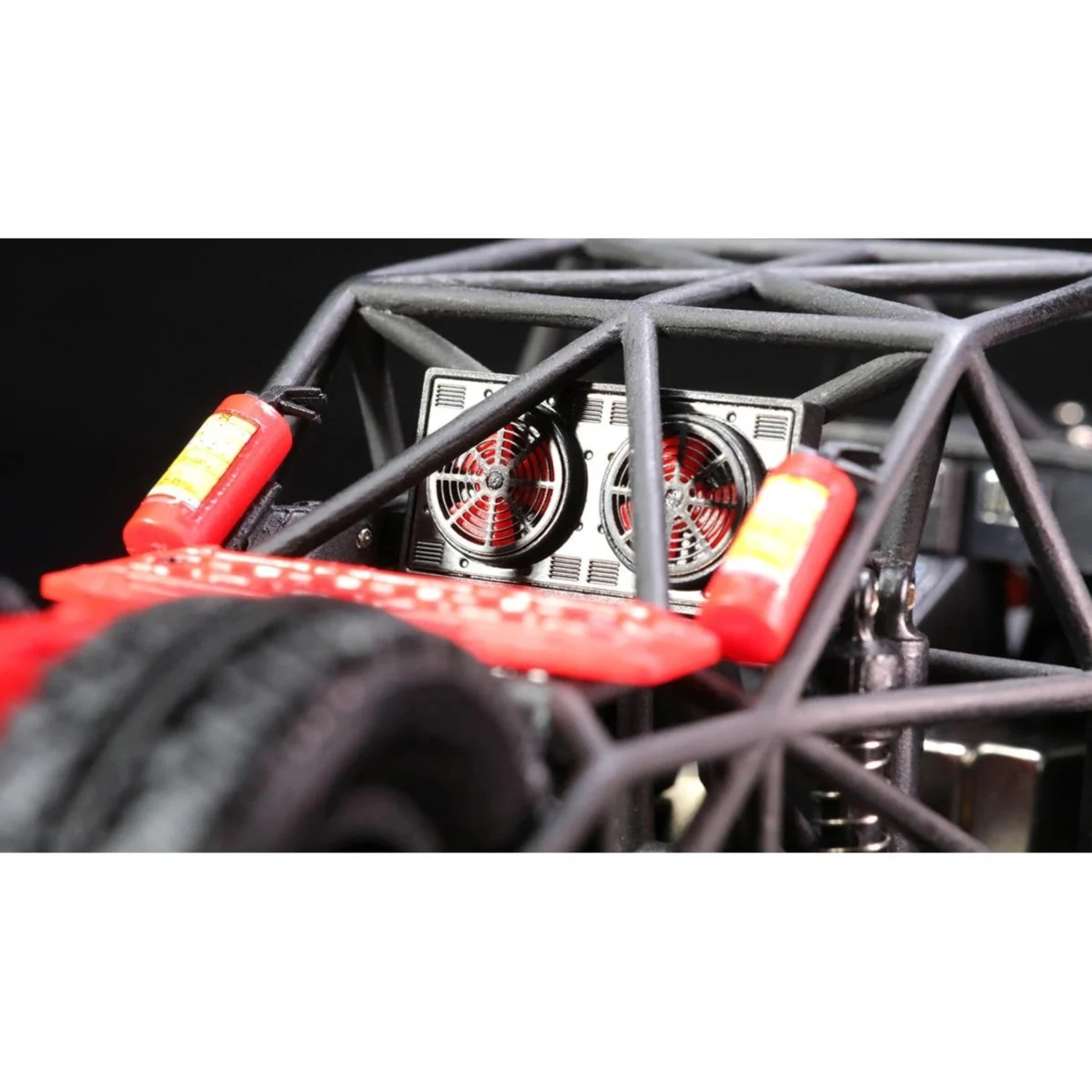

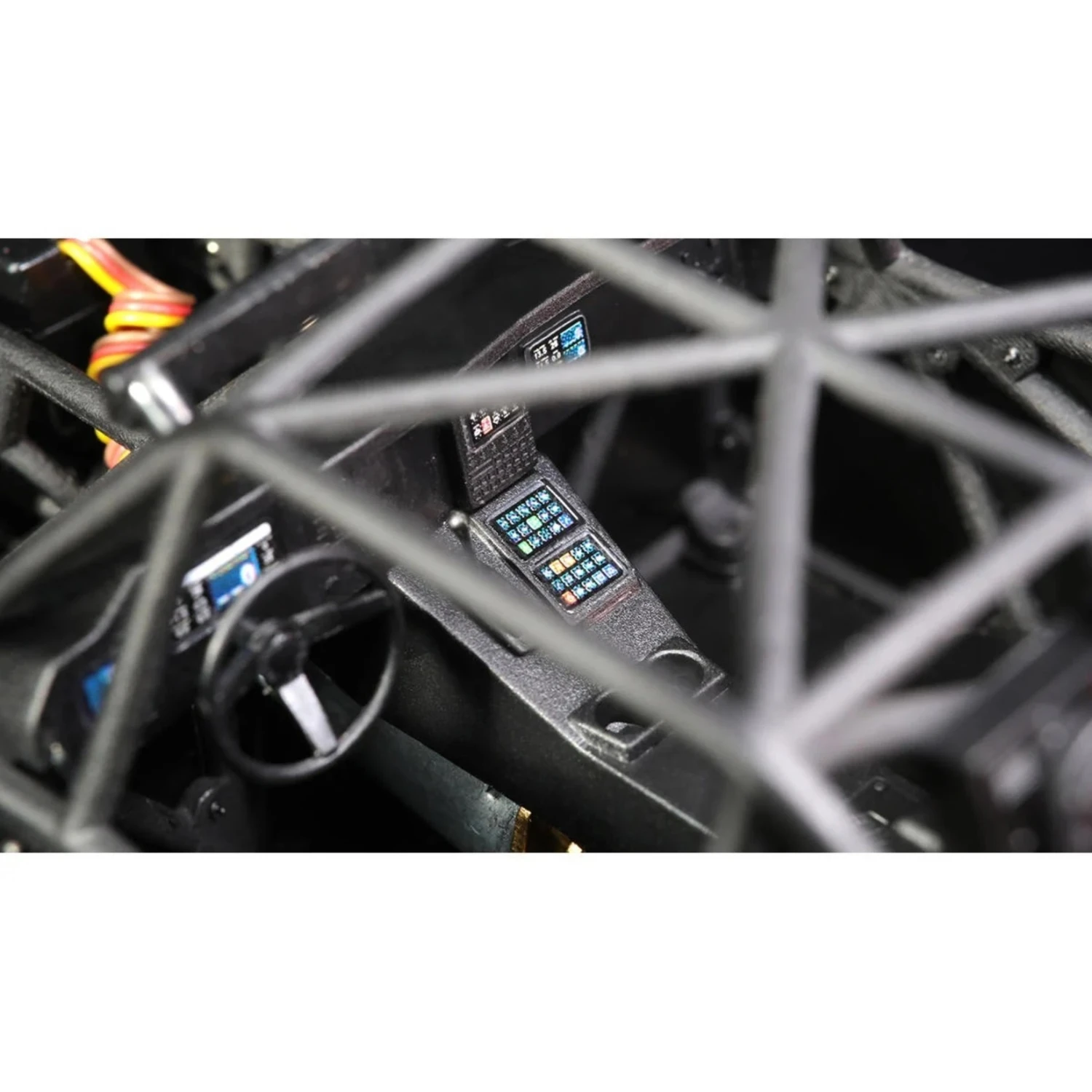

• Twin spare wheels, fire extinguisher, fuel canister, etched metal twin fan radiator, super detailed dashboard and other awesome scale accessories are included
• Solid rear axle
• 4-link setup
• Front long-travel double wishbones
• Sturdy pivot pin mounting system
• Stiff cage allowing the suspension to do the work while retaining just enough flex to ensure durability
• Clear and well documented assembly manual
• Individually wrapped and labeled bags

Specifications:

• Completion level: Unassembled
• Scale: 1/32
• Drivetrain: 4×2
• Length: 168mm
• Width: 79mm
• Height: 59mm

Includes:

• (1) Orlandoo Hunter OH32X02 1/32 Micro Trophy Truck Kit
• (1) Clear Body

Needed to Complete:

• (1) 2-3 Channel Radio System or D4L Radio System (transmitter & receiver)
• (1) 2.2g Micro Digital Servo
• (1) Micro Motor
• (1) Orlandoo Hunter Motor w/reduction gear
• (1) PCB/LED/ESC Board or D4L Radio System (Orlandoo TS0002 ESC Recommended)
• (1) 7.4V 2S 260mAh LiPo Battery (OLHLS7401-B)
• Paint for body

Note:

• First time builders should not attempt assembly without guidance from an experienced modeler.
• When using the D4L Radio system, a PH2.0 to Female JST adapter is required to connect a JST battery to the receiver.
