Orlandoo Hunter 1/32 Micro Scale Military Truck Kit #OH32M01

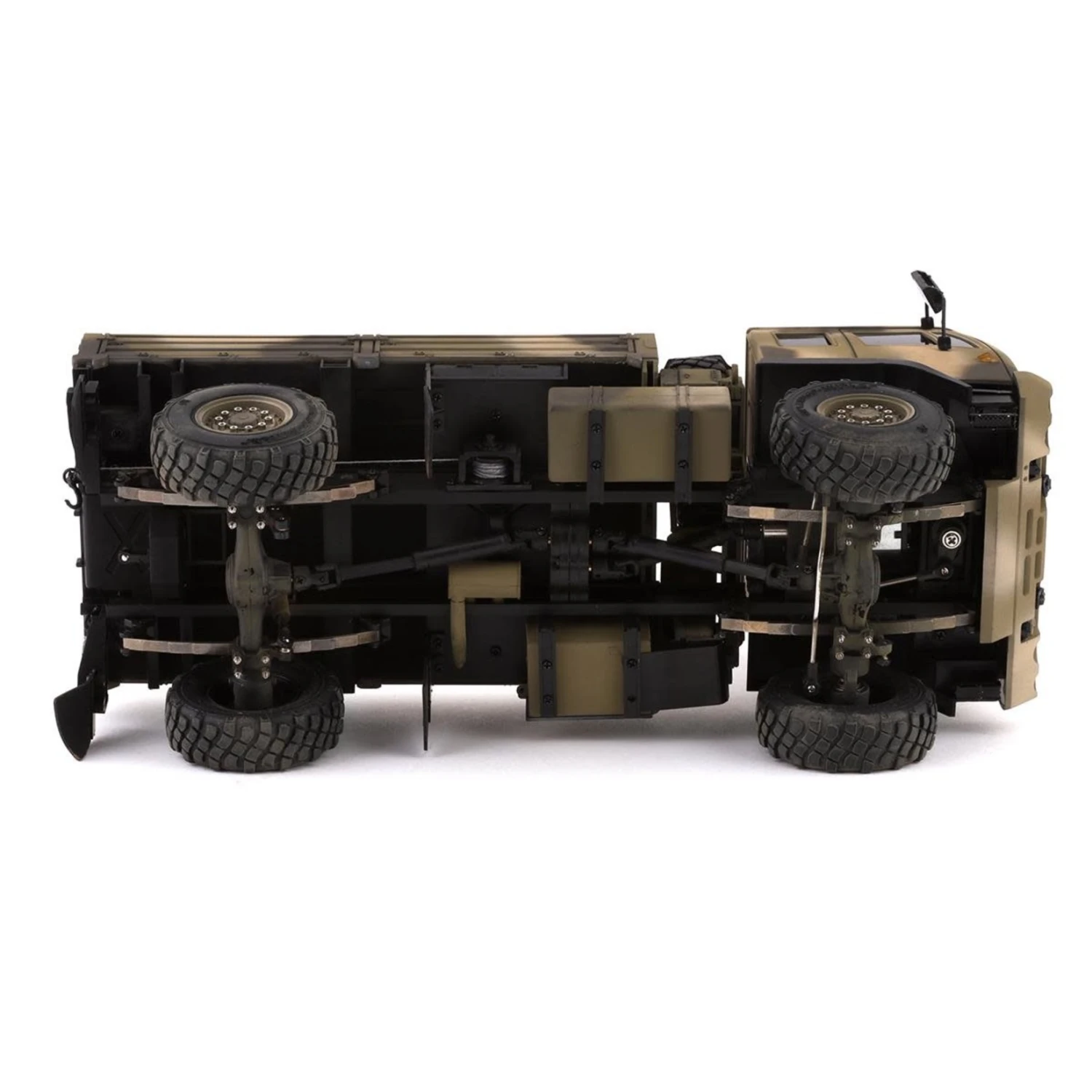

The Orlandoo OH32M01 1/32 Micro Scale Military Truck Kit is an incredibly detailed micro sized scale truck. This cellphone sized kit includes an extremely detailed hard plastic military truck body, super soft scale tires, tilt cab, scale axles and ten lug wheels. But don’t let the micro size fool you! This scale truck is equipped with solid axles, motor forward transmission and leaf spring suspension with friction shocks on all four corners. Either on the trail or on a desk this truck is a true performer.

The OH32M01 is an unassembled kit, and requires servo, ESC, motor and battery for completion. We recommend you choose Orlandoo Hunter components to complete the package. You will need one 2.2g micro digital servo, one Orlandoo micro motor, one 260mAH 2S LiPo battery, one PCB/LED/ESC board and a 3-channel radio system to finish off the kit. Some building experience is recommended.

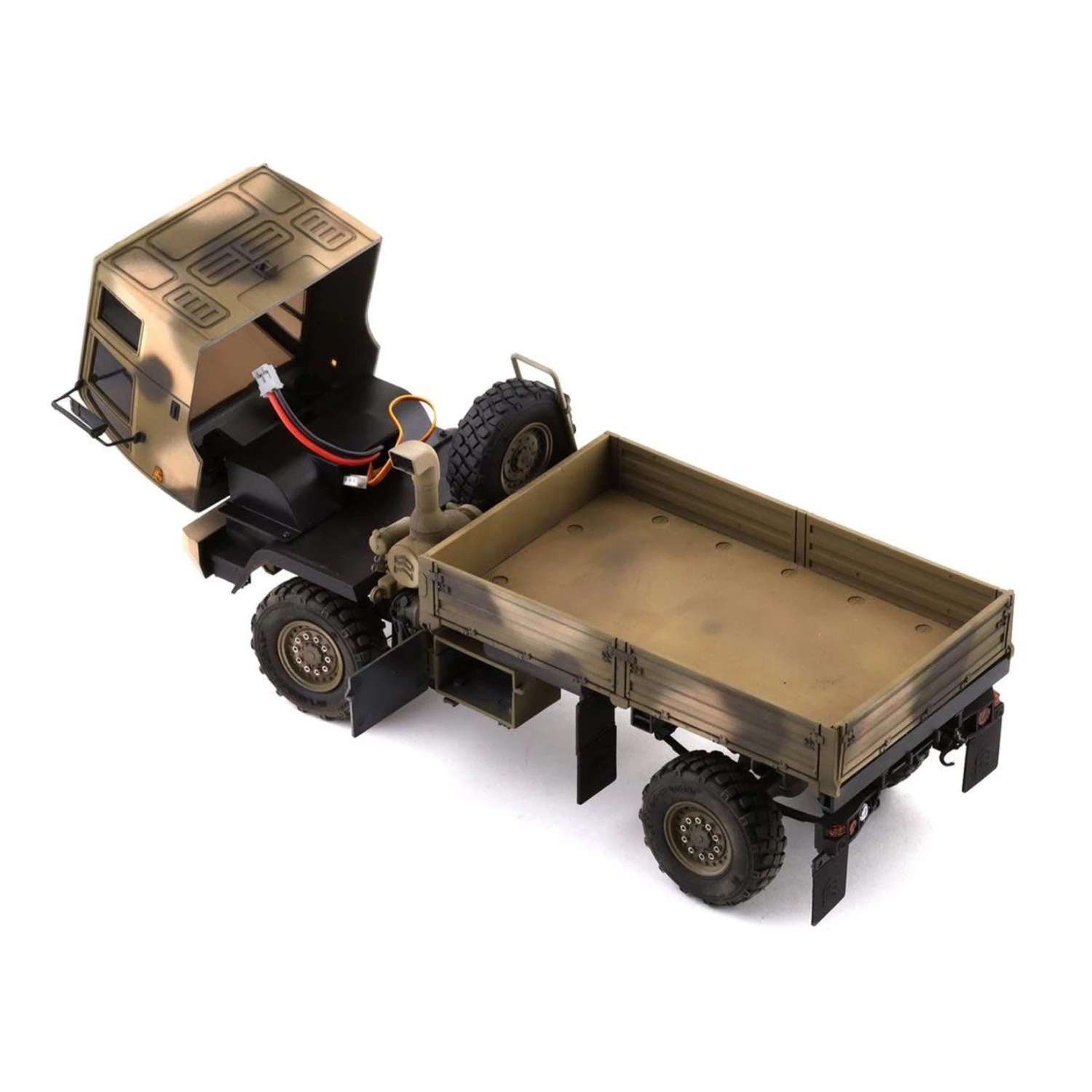

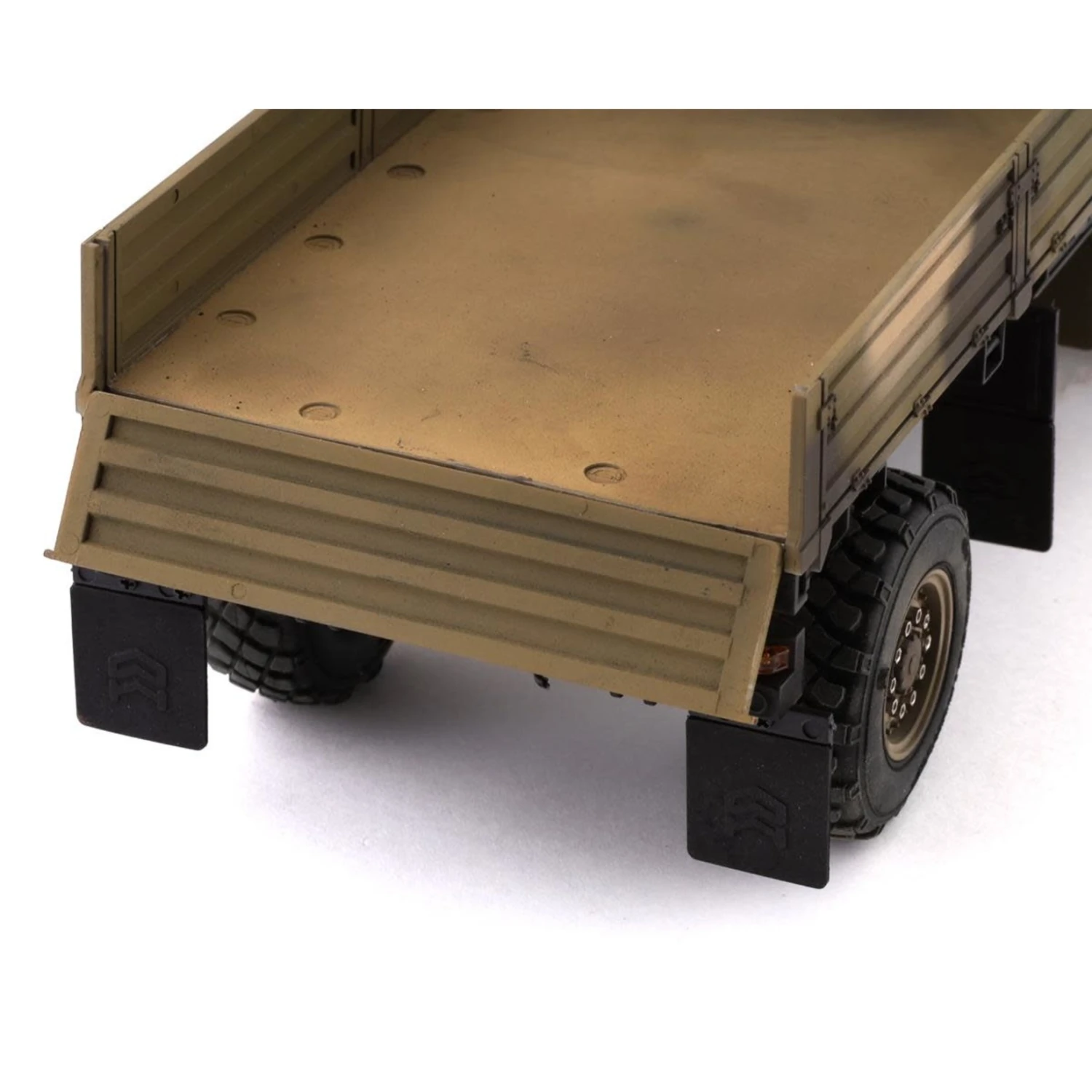

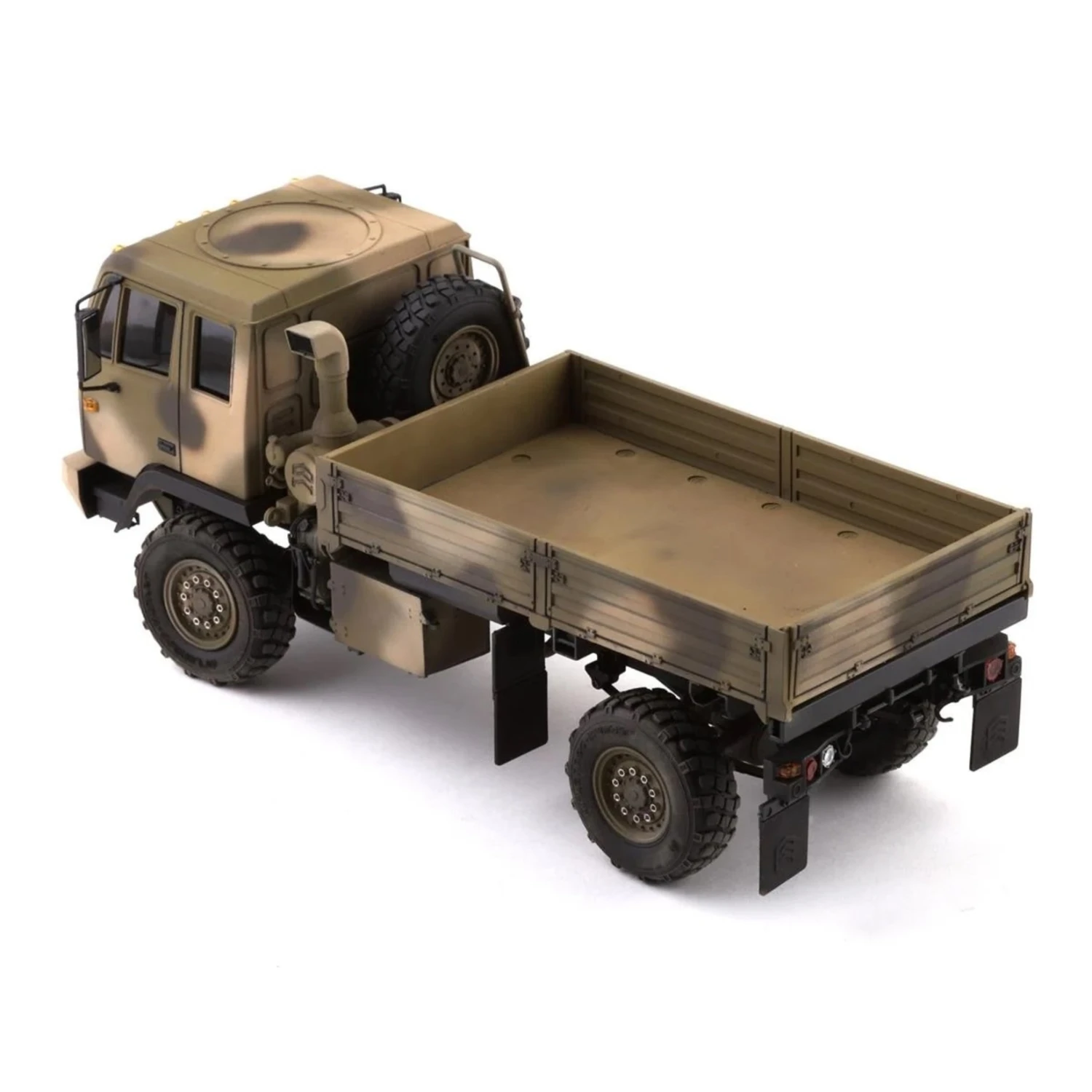

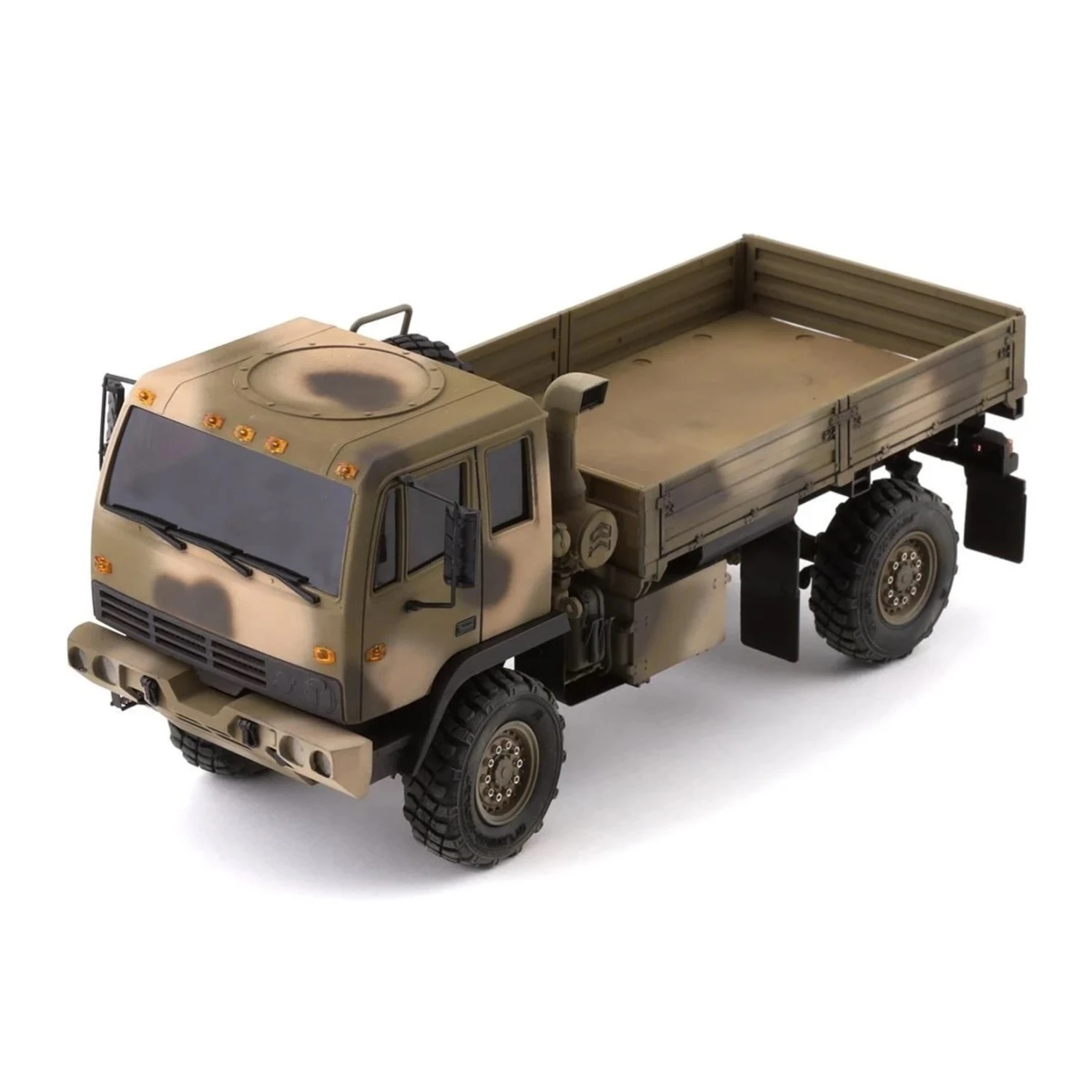

NOTE: Finished and painted kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

• Detailed hard plastic body
• Motor forward transmission
• Micro size perfect for home or office use
• Full time shaft driven 4WD
• Super grippy scale tread pattern tires
• Included building tools
• Realistic leaf spring suspension
• Friction Dampers
• Photo Etched parts

Specifications:
Length: 205mm
Width: 75mm
Height: 93mm
Tread: 66mm
Wheelbase: 126mm

Needed To Complete:

• 2-3 Channel Radio System or D4L Radio System (transmitter & receiver)
• 2.2g Micro Digital Servo
• Orlandoo Hunter Motor w/reduction gear
• PCB/LED/ESC Board or D4L Radio System
• 7.4V 2S 260mAh LiPo Battery (OLHLS7401-B)
• Batteries for Transmitter
• Plastic model paint (for body)

NOTE:

• First time builders should not attempt assembly without the guidance from an experienced modeler.
• Complete model shown for illustrative purposes only. Assembly required.
• When using the D4L Radio system, a PH2.0 to Female JST adapter is required to connect a JST battery to the receiver.
