Losi TLR Tuned LMT Limited Edition 4WD Solid Axle Monster Truck Kit #LOS04027

Limited Edition TLR Tuned LMT Solid Axle Monster Truck Kit

This is the Losi TLR Tuned LMT Limited Edition 4WD Solid Axle Monster Truck Kit. This specialized kit brings next level performance to the LMT platform. Available in limited quantities this special edition incorporates features designed by the team at TLR to provide incredible performance out of the box. Upgraded with top-of-the-line TLR option parts, this kit comes with all the upgrades ultra-competitive racers and monster truck enthusiasts are looking for. The TLR Tuned LMT kit represents the absolute pinnacle of RC solid axle monster truck design, dedicated to winning and to looking good while doing it.

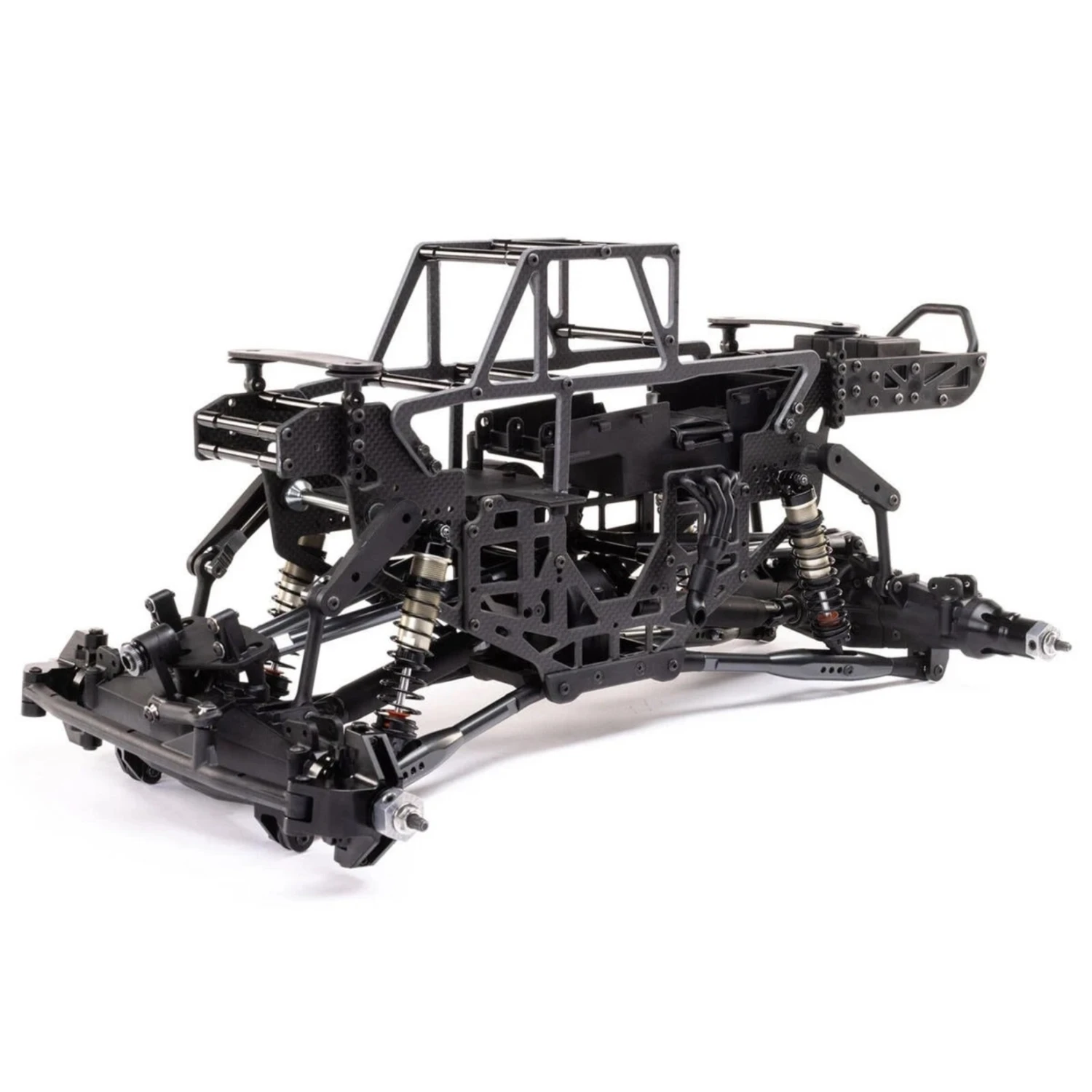

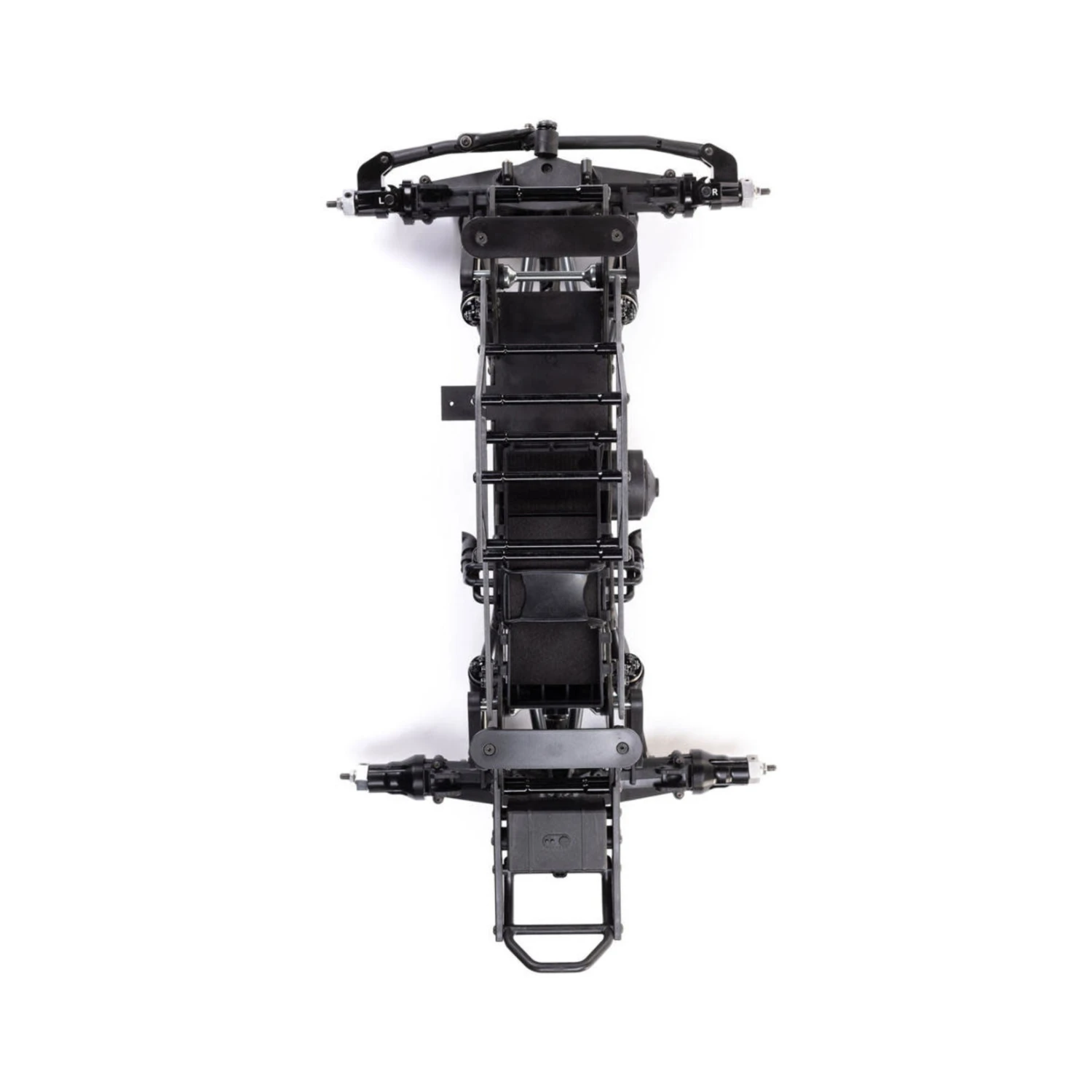

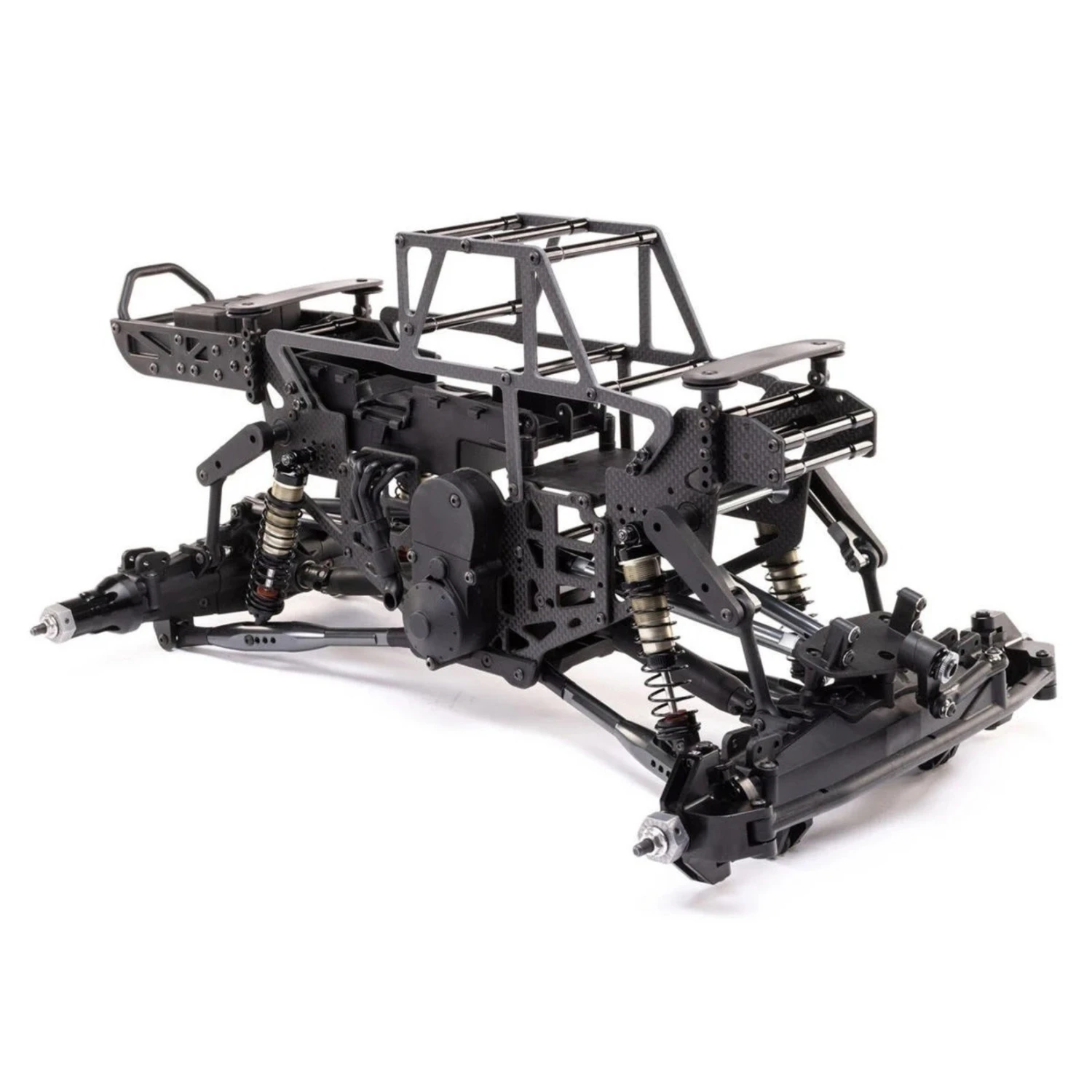

The lower, shorter stance of the TLR Tuned LMT carbon fiber chassis plates reduces weight and allows for more body options to be mounted at a racing stance when assembled. TLR shocks with machined aluminum, hard-anodized shock bodies and caps allow quick ride height adjustments and offer a precise, low friction feel. You can easily tune the suspension for asphalt, dirt, grass, or other racing surfaces. The kit’s durable aluminum upgrades include front spindles and carriers, rear toe blocks, 4-links, and cross bars. Be sure to get yours now to experience the difference that TLR’s true passion for racing makes!

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.





Features:

• Racing-focused, weight reducing carbon fiber chassis plates.

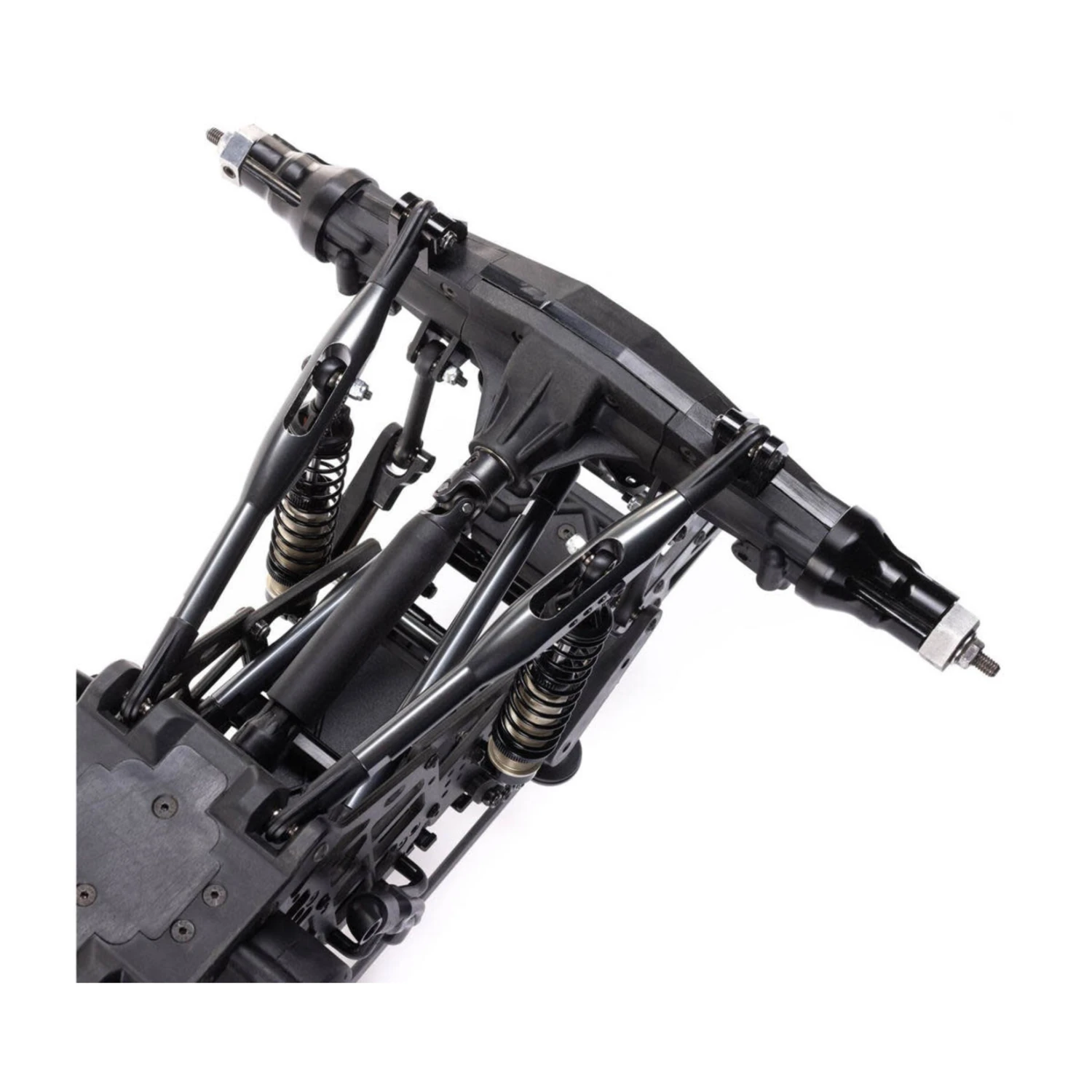

• Longer 15″ wheelbase with shock mountable lower 4-link bars.
• TLR shocks with machined aluminum, hard-anodized shock bodies and caps.

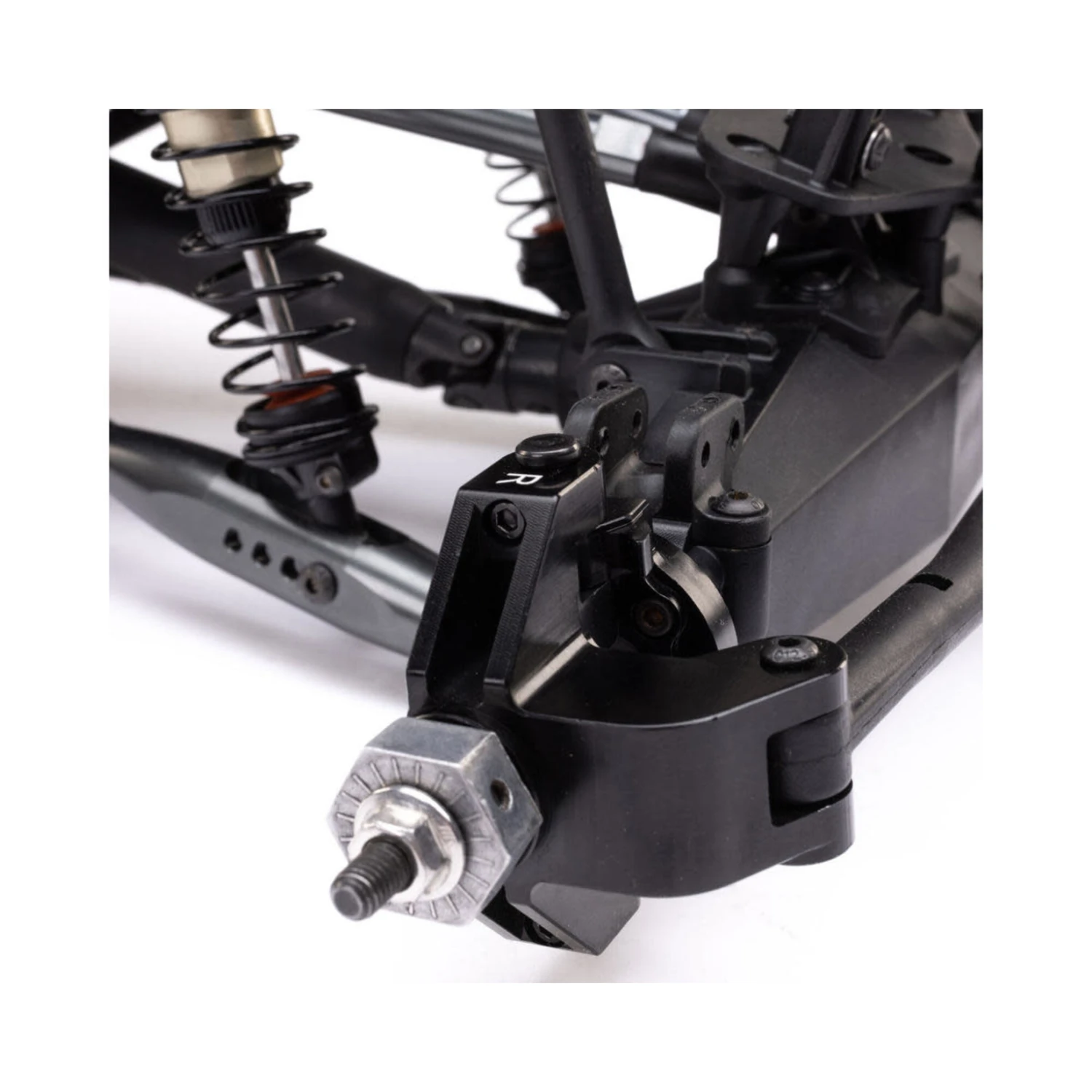

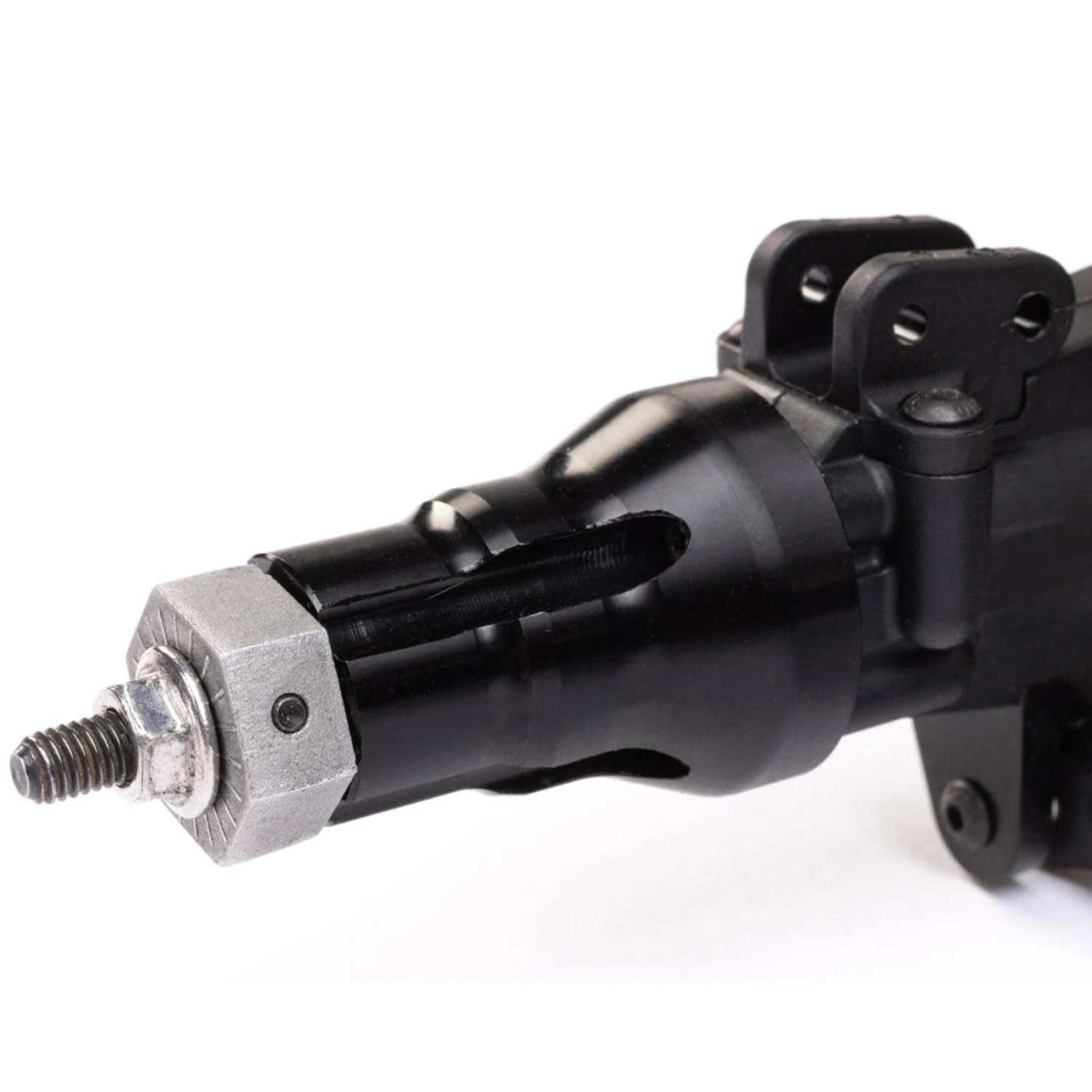

• Aluminum spindle carriers and front spindles with larger bearings.
• Aluminum rear toe blocks with larger bearing for axle support.
• Aluminum cross bars to minimize flex between the chassis plates.

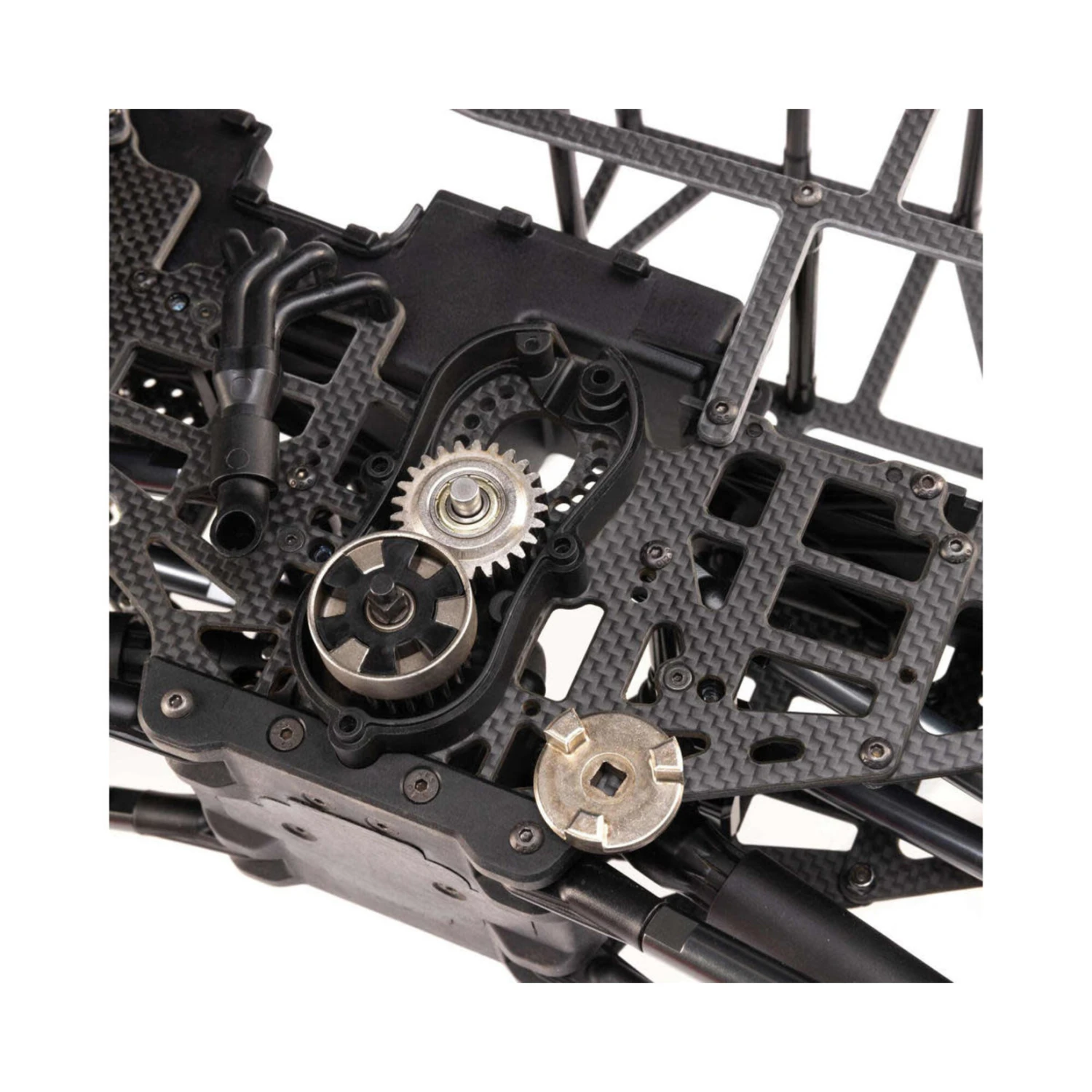

• Team Losi Racing inspired helical cut servo saver.
• Low CG battery tray that accepts “shorty” race packs.
• Body mounts that provide multiple options for securing your body.

Specifications

• Length: 20.75″ (527mm)
• Width: 15.25″ (387mm)
• Height: 10.5″ (267mm)
• Ground Clearance: 2.00″ (50.8mm)
• Wheelbase: 15″ (381mm)
• Weight: 9.95lbs (4.51kg) with Proline Tires and 5000mAh 2s Shorty Pack
• Chassis: 3mm, Twin Vertical Plate, Carbon Fiber
• Drivetrain: 4WD
• Differential: Bevel Gear/Sealed
• Internal Gear Ratio: 10.16:1
• Final Drive Ratio: 18.76:1
• Suspension: Solid Axle/Solid Axle
• Shock Type: 0.47in (12mm), Aluminum, Oil Filled
• Wheel Hex Size: 17mm
• Pinion: 14T
• Approximate Assembly Time: 5-7 Hours

Includes:

• (1) Unassembled Losi TLR Tuned LMT Kit
• (1) Product Manual
• (1) 14T Mod 1 Pinion Gear

Needed to Complete:

• (1) 2+ Channel Transmitter and Receiver
• (1) High-Torque Steering Servo
• (1) Electronic Speed Control
• (1) Brushless Motor
• (1) Battery
• (4) Wheels & Tires
• (1) Suitable Body & Paint
• Tools for Assembly
